2025 Hyundai IONIQ 5 Specifications
From
$69,800
excl. on-roads
The 2025 Hyundai IONIQ 5 is available in 6 variant s. 0The IONIQ 5 is available with rear and 4x4 and runs on undefined. The table below shows the full specification of the different variants.
All specs for the 2025 Hyundai IONIQ 5
See comprehensive specs details for the Hyundai IONIQ 5.
Base
- 360 view camera
- 3d Enhanced View
- Air conditioning
- Air Conditioning Type: Fully-auto
- Climate Control Number Of Zones: 2
- Airbags
- Number Of: 7
- Ambient lighting
- Colour Selection
- Anti collision system
- Activates Brake Lights
- Automatic Emergency Braking
- Brakes At Low Speed: Front And Rear
- Driver Monitor
- Emergency Driver Intervention System
- Includes Junction Crossing
- Includes Junction Turning
- Object Avoidance
- Operates Above 50 Kph/30 Mph
- Operates Below 50 Kph/30 Mph
- Pedestrian & Cyclist Avoidance System
- Pedestrian Collision Mitigation Steering
- Visual/acoustic Warning
- Audio system
- Colour Screen
- Digital Radio
- Radio: Am/fm
- Touch Screen
- Autonomous drive
- Active Lane Control
- Level: 2 - Partial Automation
- Traffic Jam Assist
- Traffic Sign Response
- Traffic Sign Response Activation: Auto
- Traffic Sign Response City
- Traffic Sign Response Off-highway
- Blind spot monitor
- Active Without Turn Signal
- Buzzer
- Includes Display
- Cargo area cover/rear parcel shelf
- Type: Flexible
- Charging connector
- Charging Socket Ac 1
- Charging Socket Dc 1
- Location Of Ac 1 Socket: Rear Side
- Location Of Dc 1 Socket: Rear Side
- Charging information
- Amps (a): 10
- Calc Duration (hrs) Max Supplied 0%-100%: 6.07
- Calc Duration (hrs) Max Supplied 0%-100%: 6.59
- Calc Duration (hrs) Max Supplied 0%-100%: 8.10
- Calc Duration (hrs) Max Supplied 0%-100%: 8.79
- Calc Duration (hrs) Max Supplied 10%-80%: 0.23
- Calc Duration (hrs) Max Supplied 10%-80%: 0.25
- Calc Duration (hrs) Max Supplied 10%-80%: 0.31
- Calc Duration (hrs) Max Supplied 10%-80%: 0.33
- Calculated Duration (hrs) 100kw 10%-80%: 0.55
- Calculated Duration (hrs) 100kw 10%-80%: 0.60
- Calculated Duration (hrs) 100kw 10%-80%: 0.73
- Calculated Duration (hrs) 100kw 10%-80%: 0.80
- Calculated Duration (hrs) 3.7kw 0%-100%: 17.32
- Calculated Duration (hrs) 3.7kw 0%-100%: 18.81
- Calculated Duration (hrs) 3.7kw 0%-100%: 23.11
- Calculated Duration (hrs) 3.7kw 0%-100%: 25.08
- Calculated Duration (hrs) 50kw 10%-80%: 1.10
- Calculated Duration (hrs) 50kw 10%-80%: 1.20
- Calculated Duration (hrs) 50kw 10%-80%: 1.47
- Calculated Duration (hrs) 50kw 10%-80%: 1.59
- Calculated Duration (hrs) 7.4kw 0%-100%: 11.56
- Calculated Duration (hrs) 7.4kw 0%-100%: 12.54
- Calculated Duration (hrs) 7.4kw 0%-100%: 8.66
- Calculated Duration (hrs) 7.4kw 0%-100%: 9.41
- Duration (hours): 0.30
- Duration (hours): 10.83
- Duration (hours): 24.92
- Duration (hours): 34.33
- Duration (hours): 40.00
- Duration (hours): 7.92
- Max Kw Supplied To Vehicle: 10.50
- Max Kw Supplied To Vehicle: 240.00
- Quoted Kw Supplied To Vehicle: 2.00
- Quoted Kw Supplied To Vehicle: 240.00
- Quoted Kw Supplied To Vehicle: 7.00
- State Of Charge Ends At (%): 100
- State Of Charge Ends At (%): 80
- State Of Charge Starts At (%): 10
- Voltage (v): 230
- Voltage (v): 800
- Connection to ext.entertainment devices
- Usb Connection Front
- Usb Connection Rear
- Total Number Of Usb Connections Front: 2
- Total Number Of Usb Connections Rear: 1
- Cruise control
- Acc Linked To Mapping
- Acc Linked To Mapping - City
- Acc Linked To Mapping - Corner Reaction
- Acc Linked To Mapping - Highway Exit
- Adaptive Cruise Cont Linked To Mapping
- Adaptive Cruise Control
- Adaptive Cruise Control (acc)
- Stop/go Function: Stop & Go
- Display screen
- Concealable Screen: No
- Orientation: Fixed
- Screen Size (in): 12.30
- Touch Screen
- Door mirrors/cameras
- Colour: Toned
- Heated
- Indicator Lights
- Type: Electrically Adjustable
- Driver modes
- Includes Engine Mapping
- Includes Steering
- Electric Power source
- Actively Heated/cooled Battery
- Battery Amp-hour (ah): 110.9
- Battery Amp-hour (ah): 111.0
- Battery Amp-hour (ah): 120.5
- Battery Cell Count: 384
- Battery Cell Type: Pouch
- Battery Supplier: Lg Energy Solution
- Battery Supplier: Other
- Battery Type: Lithium Ion
- Battery Type: Nickel Manganese Cobalt
- Battery Voltage (v): 523.0
- Battery Voltage (v): 697.0
- High Power Charger
- Max Wireless Charging Kw: 0.0
- Maximum Battery Kilowatt Hour (kwh): 58.00
- Maximum Battery Kilowatt Hour (kwh): 63.00
- Maximum Battery Kilowatt Hour (kwh): 77.40
- Maximum Battery Kilowatt Hour (kwh): 84.00
- Onboard Charger (kw): 10.5
- Electric driven wheels
- Electric Driven Wheels: Rear
- Electric motor
- Electric Motor Type: Ac Perm Magnet Synchronous
- Max Torque Motor Nm: 350
- Motor Location: Rear
- Power Output Motor Hp/ps: 170.0
- Power Output Motor Hp/ps: 228.6
- Power Output Motor Kw: 125.0
- Power Output Motor Kw: 168.1
- Electrical system
- Voltage (v): 12
- Energy recuperation
- Level Selection
- Single-pedal Driving
- Exterior door handles
- Flush Door Handles: Electric
- Front seat
- Electrically Adjustable
- Height Type: Electric
- Height Type: Manual
- Lumbar Type: Electric
- Number Of Electrical Adjustments: 5
- Number Of Electrical Adjustments: None
- Reach Type: Electric
- Reach Type: Manual
- Reclining Type: Electric
- Reclining Type: Manual
- Type: Bucket
- Head rests
- Number: 3
- Headlight control
- Auto Highbeam
- Dusk Sensor
- Height Adjustment: Manual
- Headlights
- Bulb Type (high Beam): Led
- Bulb Type (low Beam): Led
- Lens Type: Ellipsoidal
- Instrument cluster
- Reconfigurable
- Internal dimensions
- Headroom Front (in): 39.8
- Headroom Front (in): 40.7
- Headroom Front: 1010
- Headroom Front: 1034
- Headroom Rear (in): 37.5
- Headroom Rear (in): 38.7
- Headroom Rear: 953
- Headroom Rear: 982
- Hip Room Front (in): 53.9
- Hip Room Front: 1368
- Hip Room Rear (in): 53.6
- Hip Room Rear: 1362
- Leg Room Front (in): 41.7
- Leg Room Front (in): 44.8
- Leg Room Front: 1060
- Leg Room Front: 1138
- Leg Room Rear (in): 39.4
- Leg Room Rear: 1002
- Shoulder Room Front (in): 57.7
- Shoulder Room Front: 1465
- Shoulder Room Rear (in): 57.7
- Shoulder Room Rear (in): 57.9
- Shoulder Room Rear: 1465
- Shoulder Room Rear: 1470
- Lane departure warning
- Activates Brakes
- Activates Steering
- Low tyre pressure indicator
- Displays Pressure
- Luxury trim
- On Centre Floor Console: Alloy Look
- On Dash: Alloy Look
- On Doors: Synthetic Leather
- Mobile Integration
- Android Auto
- Android Number Of Months Subscription: 999
- Android Wireless Connection
- Apple Carplay
- Apple Number Of Months Subscription Inc: 999
- Apple Wireless Connection
- Multi-function display screen
- Concealable Screen: No
- Orientation: Fixed
- Screen Size (in): 12.30
- Touch Screen
- Navigational systems
- Controls: Touch Screen
- Information Type: 3d And Voice
- Map Updates Months Of Subscription: 120
- Screen Size (in): 12.30
- Traffic Info
- Over air updates
- Type: Ota Updates
- Paint
- Type: Mica
- Parking assistance
- Automatic Braking Whilst Parking
- Type: Remote Park
- Parking distance system
- Type: Camera
- Type: Sensor & Camera
- Power locks
- Includes Power Windows
- Operation: Card Key
- Power steering
- Vehicle Speed Proportional
- Rear cross traffic collision avoidance
- Includes Braking
- Type: Sensor & Camera
- Rear door
- Type: Lifting Gate
- Rear seats
- Folding: 40/60
- Reclining Type: Manual
- Seating Capacity: 3
- Type: Bench
- Rear view mirror/camera
- Auto-dimming
- Rear view mirror
- Auto-dimming
- Rear window
- Type: Fixed
- Remote HVAC control
- Includes Cooling
- Includes Heating
- Includes Phone
- Remote audio controls
- Type: Steering Wheel Mounted
- Remote services
- Beep/flash
- Geo Fencing
- Number Of Months Subscription Included: 60
- Remote Lock/unlock
- Send Destination To Car
- Speed Alert
- Vehicle Diagnostics
- Seat upholstery
- Additional Seat Material: Synthetic Leather
- Main Seat Material: Cloth
- Main Seat Material: Wool
- Marketed As Sustainable/vegan
- Seating
- Seating Capacity: 5
- Seating Configuration: 2+3
- Smart card / smart key
- Includes Keyless Entry
- Includes Keyless Start
- Speakers
- Number Of: 6
- Steering wheel
- Height Adjustment
- Multi-function
- Telescopic Adjustment
- Touch Controls
- Type: Leather Covered
- Telematics
- Advanced Auto Collision Notification
- USB charging port
- Number: 2
- V2L charging
- Number Of Outlets: 2
- Total Power (kw): 3.6
- Vanity mirror
- Illuminated
- Ventilation system
- Digital Display
- Heat Pump
- Touch Screen Controls
- Windscreen wipers
- Intermittent Wipe: Automatic
- Rain Sensor
Bodytype
- 5D SUV
Drivetrain
- rear
Transmission
- 1 SP AUTOMATIC
Dynamiq
Adds to Base:
- Audio system
- Brand Name: Bose
- Automatic door pull shut
- Rear Boot/hatch
- Charging information
- Duration (hours): 11.75
- Electric driven wheels
- Electric Driven Wheels: 4x4
- Electric motor
- Max Torque Motor Nm: 255
- Motor Location: Front
- Power Output Motor Hp/ps: 100.5
- Power Output Motor Hp/ps: 224.9
- Power Output Motor Hp/ps: 229.0
- Power Output Motor Kw: 165.4
- Power Output Motor Kw: 73.9
- Front seat
- Heated
- Instrument cluster
- Hud Inc Augmented Reality
- Head-up Display: Windscreen
- Seat upholstery
- Main Seat Material: Leather
- Speakers
- Brand Name: Bose
- Number Of: 8
Removes from Base:
- Charging information
- Calc Duration (hrs) Max Supplied 0%-100%: 6.07
- Calc Duration (hrs) Max Supplied 0%-100%: 6.59
- Calc Duration (hrs) Max Supplied 10%-80%: 0.23
- Calc Duration (hrs) Max Supplied 10%-80%: 0.25
- Calculated Duration (hrs) 100kw 10%-80%: 0.55
- Calculated Duration (hrs) 100kw 10%-80%: 0.60
- Calculated Duration (hrs) 3.7kw 0%-100%: 17.32
- Calculated Duration (hrs) 3.7kw 0%-100%: 18.81
- Calculated Duration (hrs) 50kw 10%-80%: 1.10
- Calculated Duration (hrs) 50kw 10%-80%: 1.20
- Calculated Duration (hrs) 7.4kw 0%-100%: 8.66
- Calculated Duration (hrs) 7.4kw 0%-100%: 9.41
- Duration (hours): 24.92
- Duration (hours): 7.92
- Electric Power source
- Battery Amp-hour (ah): 110.9
- Battery Voltage (v): 523.0
- Maximum Battery Kilowatt Hour (kwh): 58.00
- Maximum Battery Kilowatt Hour (kwh): 63.00
- Electric motor
- Power Output Motor Hp/ps: 170.0
- Power Output Motor Hp/ps: 228.6
- Power Output Motor Kw: 125.0
- Front seat
- Height Type: Manual
- Number Of Electrical Adjustments: None
- Reach Type: Manual
- Reclining Type: Manual
- Seat upholstery
- Main Seat Material: Cloth
- Main Seat Material: Wool
- Speakers
- Number Of: 6
Bodytype
- 5D SUV
Drivetrain
- rear
- 4x4
Transmission
- 1 SP AUTOMATIC
Epiq
Adds to Dynamiq:
- Blind
- Type: Manual
- Electric motor
- Power Output Motor Hp/ps: 225.0
- Power Output Motor Hp/ps: 228.6
- Front seat
- Height Type: Memory
- Number Of Electrical Adjustments: 6
- Ottoman
- Reach Type: Memory
- Reclining Type: Memory
- Thigh Support Type: Electric
- Type: Single Ottoman
- Ventilated
- Headlight control
- Active High Beam
- Internal dimensions
- Headroom Front (in): 39.1
- Headroom Front: 993
- Memorized adjustment
- Door Mirror Position
- Rear seats
- Heated
- Reach Type: Memory
- Steering wheel
- Heated
Removes from Dynamiq:
- Electric motor
- Power Output Motor Hp/ps: 224.9
- Power Output Motor Hp/ps: 229.0
- Front seat
- Height Type: Electric
- Number Of Electrical Adjustments: 5
- Reach Type: Electric
- Reclining Type: Electric
- Internal dimensions
- Headroom Front (in): 39.8
- Headroom Front: 1010
- Headroom Rear (in): 38.7
- Headroom Rear: 982
- Shoulder Room Rear (in): 57.9
- Shoulder Room Rear: 1470
Bodytype
- 5D SUV
Drivetrain
- rear
- 4x4
Transmission
- 1 SP AUTOMATIC
Dynamiq N Line
Adds to Epiq:
- Electric motor
- Power Output Motor Hp/ps: 224.9
- Power Output Motor Hp/ps: 229.0
- Front seat
- Height Type: Electric
- Number Of Electrical Adjustments: 5
- Reach Type: Electric
- Reclining Type: Electric
- Internal dimensions
- Headroom Front (in): 39.8
- Headroom Front: 1010
- Headroom Rear (in): 38.7
- Headroom Rear: 982
- Shoulder Room Rear (in): 57.9
- Shoulder Room Rear: 1470
- Seat upholstery
- Additional Seat Material: Leather
- Main Seat Material: Synthetic Suede
Removes from Epiq:
- Blind
- Type: Manual
- Charging information
- Calc Duration (hrs) Max Supplied 0%-100%: 8.10
- Calc Duration (hrs) Max Supplied 10%-80%: 0.31
- Calculated Duration (hrs) 100kw 10%-80%: 0.73
- Calculated Duration (hrs) 3.7kw 0%-100%: 23.11
- Calculated Duration (hrs) 50kw 10%-80%: 1.47
- Calculated Duration (hrs) 7.4kw 0%-100%: 11.56
- Duration (hours): 11.75
- Duration (hours): 34.33
- Electric Power source
- Battery Amp-hour (ah): 111.0
- Battery Supplier: Lg Energy Solution
- Battery Type: Nickel Manganese Cobalt
- Maximum Battery Kilowatt Hour (kwh): 77.40
- Electric motor
- Power Output Motor Hp/ps: 225.0
- Power Output Motor Hp/ps: 228.6
- Front seat
- Height Type: Memory
- Number Of Electrical Adjustments: 6
- Ottoman
- Reach Type: Memory
- Reclining Type: Memory
- Thigh Support Type: Electric
- Type: Single Ottoman
- Ventilated
- Headlight control
- Active High Beam
- Internal dimensions
- Headroom Front (in): 39.1
- Headroom Front (in): 40.7
- Headroom Front: 1034
- Headroom Front: 993
- Headroom Rear (in): 37.5
- Headroom Rear: 953
- Leg Room Front (in): 44.8
- Leg Room Front: 1138
- Shoulder Room Rear (in): 57.7
- Shoulder Room Rear: 1465
- Memorized adjustment
- Door Mirror Position
- Rear seats
- Heated
- Reach Type: Memory
- Seat upholstery
- Additional Seat Material: Synthetic Leather
- Main Seat Material: Leather
- Steering wheel
- Heated
Bodytype
- 5D SUV
Drivetrain
- rear
- 4x4
Transmission
- 1 SP AUTOMATIC
Epiq N Line
Adds to Dynamiq N Line:
- Blind
- Type: Manual
- Electric motor
- Power Output Motor Hp/ps: 225.0
- Power Output Motor Hp/ps: 228.6
- Front seat
- Height Type: Memory
- Number Of Electrical Adjustments: 6
- Ottoman
- Reach Type: Memory
- Reclining Type: Memory
- Thigh Support Type: Electric
- Type: Single Ottoman
- Ventilated
- Headlight control
- Active High Beam
- Internal dimensions
- Headroom Front (in): 39.1
- Headroom Front: 993
- Headroom Rear (in): 37.5
- Headroom Rear: 953
- Shoulder Room Rear (in): 57.7
- Shoulder Room Rear: 1465
- Memorized adjustment
- Door Mirror Position
- Rear seats
- Heated
- Reach Type: Memory
- Steering wheel
- Heated
Removes from Dynamiq N Line:
- Electric motor
- Power Output Motor Hp/ps: 224.9
- Power Output Motor Hp/ps: 229.0
- Front seat
- Height Type: Electric
- Number Of Electrical Adjustments: 5
- Reach Type: Electric
- Reclining Type: Electric
- Headlight control
- Auto Highbeam
- Internal dimensions
- Headroom Front (in): 39.8
- Headroom Front: 1010
- Headroom Rear (in): 38.7
- Headroom Rear: 982
- Shoulder Room Rear (in): 57.9
- Shoulder Room Rear: 1470
Bodytype
- 5D SUV
Drivetrain
- rear
- 4x4
Transmission
- 1 SP AUTOMATIC

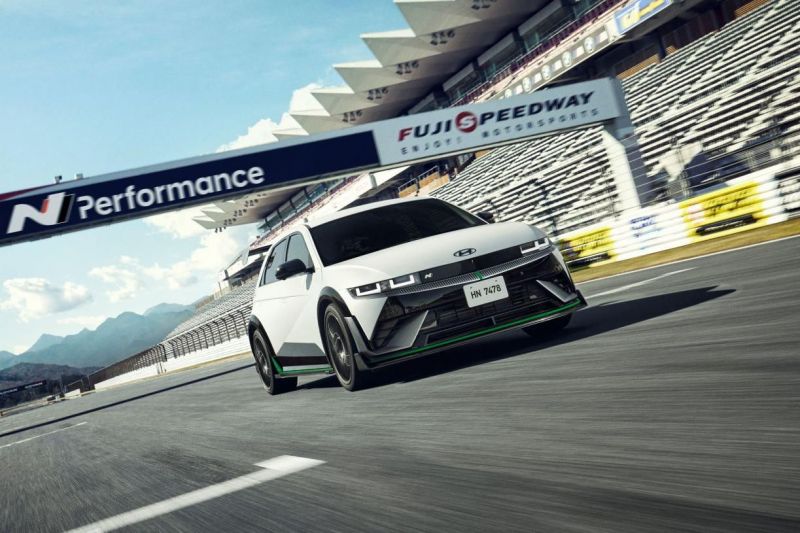

N
Adds to Epiq N Line:
- Airbags
- Number Of: 6
- Alternate suspension
- Type: Sport
- Anti collision system
- Programmable Distance
- Autonomous drive
- Highway Assist
- Lane Changing
- Black trim
- Around Side Windows
- Blind spot monitor
- Includes Collision Avoidance
- Charging information
- Calc Duration (hrs) Max Supplied 10%-80%: 0.31
- Max Kw Supplied To Vehicle: 260.00
- Quoted Kw Supplied To Vehicle: 260.00
- Connection to ext.entertainment devices
- Total Number Of Usb Connections Front: 1
- Electric motor
- Max Torque Motor Nm: 390
- Power Output Motor Hp/ps: 225.8
- Power Output Motor Hp/ps: 383.5
- Power Output Motor Kw: 166.0
- Power Output Motor Kw: 282.0
- Front seat
- Height Type: Manual
- Number Of Electrical Adjustments: None
- Reach Type: Manual
- Reclining Type: Manual
- Type: Racing
- Head rests
- Integrated
- Headlight control
- Auto Highbeam
- Internal dimensions
- Headroom Front (in): 39.8
- Headroom Front: 1010
- Headroom Rear (in): 38.7
- Headroom Rear: 982
- Leg Room Rear (in): 39.9
- Leg Room Rear: 1013
- Shoulder Room Rear (in): 57.9
- Shoulder Room Rear: 1470
- Limited slip differential
- Type: Electronic
- Parking assistance
- Type: Remote Park & Full Auto Park/exit/perp
- Rear seats
- Reach Type: Manual
- Type: Split Bench
- Rear view mirror/camera
- Digital
- Rear view mirror
- Digital
- Remote HVAC control
- Includes Timer
- Remote battery management
- Includes Battery Status Checking
- Includes Charge Completion Alert
- Includes Remote Charge Activation
- Includes Remote Charge Activation Timer
- Remote services
- Driving History & Analysis
- Find My Car
- Theft Alert
- Responsive suspension
- Driver Selectable
- Type: Electronic
- Speakers
- Subwoofer
- Telematics
- Connection Type: Via Sim In Vehicle
- V2L charging
- Maximum Outlet Power (kw): 3.6
- Voice activating system
- Includes Air Conditioning
- Includes Audio Player
- Includes Navigation System
- Includes Phone Functions
Removes from Epiq N Line:
- Airbags
- Number Of: 7
- Anti collision system
- Object Avoidance
- Pedestrian Collision Mitigation Steering
- Autonomous drive
- Traffic Jam Assist
- Blind spot monitor
- Buzzer
- Blind
- Type: Manual
- Charging information
- Amps (a): 10
- Calc Duration (hrs) Max Supplied 10%-80%: 0.33
- Duration (hours): 10.83
- Duration (hours): 40.00
- Max Kw Supplied To Vehicle: 240.00
- Quoted Kw Supplied To Vehicle: 240.00
- Connection to ext.entertainment devices
- Usb Connection Rear
- Total Number Of Usb Connections Front: 2
- Total Number Of Usb Connections Rear: 1
- Electric Power source
- Battery Cell Count: 384
- Battery Cell Type: Pouch
- Electric driven wheels
- Electric Driven Wheels: Rear
- Electric motor
- Max Torque Motor Nm: 255
- Power Output Motor Hp/ps: 100.5
- Power Output Motor Hp/ps: 225.0
- Power Output Motor Hp/ps: 228.6
- Power Output Motor Kw: 165.4
- Power Output Motor Kw: 168.1
- Power Output Motor Kw: 73.9
- Front seat
- Electrically Adjustable
- Height Type: Memory
- Lumbar Type: Electric
- Number Of Electrical Adjustments: 6
- Ottoman
- Reach Type: Memory
- Reclining Type: Memory
- Thigh Support Type: Electric
- Type: Bucket
- Type: Single Ottoman
- Headlight control
- Active High Beam
- Instrument cluster
- Hud Inc Augmented Reality
- Internal dimensions
- Headroom Front (in): 39.1
- Headroom Front: 993
- Headroom Rear (in): 37.5
- Headroom Rear: 953
- Leg Room Rear (in): 39.4
- Leg Room Rear: 1002
- Shoulder Room Rear (in): 57.7
- Shoulder Room Rear: 1465
- Lane departure warning
- Activates Brakes
- Luxury trim
- On Centre Floor Console: Alloy Look
- On Dash: Alloy Look
- Memorized adjustment
- Door Mirror Position
- Parking assistance
- Type: Remote Park
- Rear seats
- Heated
- Reach Type: Memory
- Type: Bench
Bodytype
- 5D SUV
Drivetrain
- 4x4
Transmission
- 1 SP AUTOMATIC
