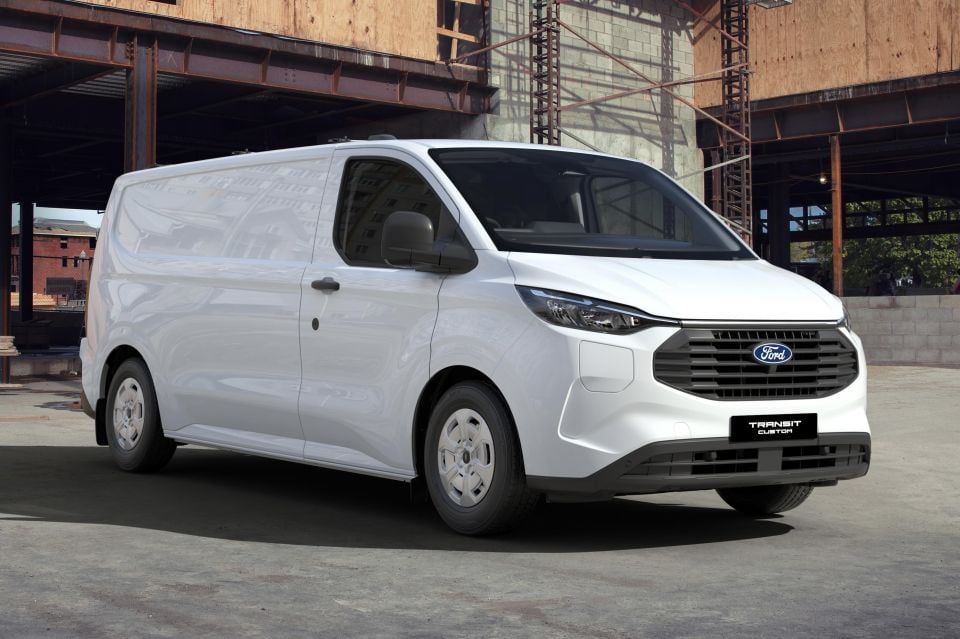

2025 Ford Transit Custom PHEV price and specs
Deliveries of the Ford Transit Custom PHEV will begin later this year, with the electrified mid-size van opening at $67,590 before on-roads.
News Editor
News Editor
The Ford Transit Custom has only ever been offered here with diesel power, but now the cargo van is getting something its Toyota HiAce and Hyundai Staria Load rivals don’t offer.
Two things, actually: a plug-in hybrid (PHEV) powertrain, and an electric powertrain.
Ford Australia announced pricing for the Transit Custom PHEV and E-Transit Custom in April, ahead of the first customer deliveries of both mid-size delivery vans in the third quarter of 2025.
Hundreds of new car deals are available through CarExpert right now. Get the experts on your side and score a great deal. Browse now.
Both will be offered in long-wheelbase Trend and short-wheelbase Sport variants, with the Transit Custom PHEV range opening at $67,590 before on-roads, or $10,000 more than the cheapest diesel variant.
Below, we’ve detailed full pricing and specifications for the PHEV lineup, which Ford calls a model year 2025.75.
Pricing
| Model | Price before on-road costs |
|---|---|
| 2025 Ford Transit Custom PHEV Trend LWB | $67,590 |
| 2025 Ford Transit Custom PHEV Sport SWB | $69,990 |
Drivetrains and Efficiency
| Specifications | Ford Transit Custom PHEV |
|---|---|
| Engine | 2.5L naturally aspirated petrol 4cyl |
| Engine outputs | 86kW and 209Nm |
| Electric motor outputs | 111kW and 320Nm |
| System outputs | 171kW |
| Battery | 11.8kWh nickel manganese cobalt (NMC) |
| AC charge rate | 3.5kW |
| Transmission | CVT |
| Drive type | Front-wheel drive |
| Kerb weight | 2019kg (Trend LWB) 1970kg (Sport SWB) |
| Gross vehicle mass (GVM) | 3225kg |
| Fuel economy (claimed) | 1.7L/100km |
| Electric driving range | 54km (WLTP) |
| Fuel tank capacity | 63L |
| CO2 emissions | 38g/100km |
| Braked towing capacity | 2300kg |
Dimensions
The Transit Custom PHEV has eight load-area tie-down loops in LWB guise, and six in the SWB Sport. Both feature a moulded floor as well as wall coverings for protection, plus LED load area lighting.
| Dimensions | Trend LWB | Sport SWB |
|---|---|---|
| Length | 5450mm | 5050mm |
| Width | 2275mm (incl. mirrors) 2148mm (mirrors folded) | 2275mm (incl. mirrors) 2148mm (mirrors folded) |
| Height | 1980-1992mm | 1990-1998mm |
| Wheelbase | 3500mm | 3100mm |
| Load space (SAE, behind bulkhead) | 6.5m3 | 5.7m3 |
| Load space (VDA, with bulkhead) | 6m3 | 5.2m3 |
| Euro pallet capacity | 4 | 3 |
| Load space width (between arches) | 1392mm | 1392mm |
| Load space height | 1425mm | 1427mm |
| Load space length (to bulhead) | 3002mm | 2602mm |
Servicing and Warranty
The Ford Transit Custom PHEV is backed by a five-year, unlimited-kilometre warranty and requires servicing every 12 months or 30,000km, whichever comes first.
Capped-price servicing information isn’t yet available.
Safety
The Ford Transit Custom hasn’t been crash-tested by ANCAP or Euro NCAP, though ANCAP gave the diesel model a Platinum (96 per cent) rating in assessment of its active safety technology.
Standard safety equipment includes:
- 6 airbags
- Adaptive cruise control with stop/go
- Autonomous emergency braking (AEB)
- Intersection assist
- Reverse brake assist
- Blind-spot assist
- Evasive steering assist
- Intelligent speed limiter
- Lane centring
- Lane-keep assist
- Rear cross-traffic alert
- Safe exit warning
- Traffic sign recognition
- Trailer sway control
- Tyre pressure monitoring
- Front and rear parking sensors
- Reversing camera
Standard Equipment
There are two variants in the Transit Custom PHEV lineup.
The Trend comes standard with the following equipment:
- 16-inch steel wheels
- 215/65 R16C tyres
- Steel spare
- Normal, Eco, Slippery and Tow/Haul drive modes
- Automatic halogen headlights
- Automatic high-beam
- Rain-sensing wipers
- Quickclear heated windscreen
- Single sliding left-hand door
- Metal bulkhead with window, load-through hatch
- Rear barn doors
- Roof racks
- Three seats
- Cloth upholstery
- 8-way power driver’s seat
- Single driver’s arm rest
- Heated outboard front seats
- Under-seat stowage compartment
- 13-inch touchscreen infotainment system
- Satellite navigation with one year of Connected Navigation Services
- Wireless Apple CarPlay and Android Auto
- DAB+ digital radio
- FM radio
- 4-speaker sound system
- 12-inch digital instrument cluster
- Wireless phone charger
- 1 x USB-A outlet
- 1 x USB-C outlet
- 1 x 12V outlet
- Single-zone climate control
- Leatherette-wrapped steering wheel
- Tilt and telescopic steering column adjustment
- Push-button start
- 3 x cup holders
The Sport adds:
- 17-inch matte black alloy wheels
- 215/60 R17C tyres
- Sport drive mode
- LED headlights
- LED daytime running lights
- LED tail-lights
- Heated exterior mirrors with auto fold
- Sport body kit
- Rear spoiler
- Exterior striping
- ‘Sports’ interior trim with blue accent stripes
- 10-way power driver’s seat
- Dual driver’s arm rest
- 4 x USB-C outlets
- Dual-one climate control
- Locking lower glovebox
- Upper glovebox with removable rubber insert and USB-C outlet
- Proximity entry
Options
The following features are optional:
- Dual sliding doors, no windows: $1000
- Rear tailgate: $700
- Two-seat layout (Trend only): $150
- Secure Visibility Pack (Trend only): $1500
- Digital rear-view mirror
- Windowless metal bulkhead
Colours
Frozen White paint is standard.
The following exterior finishes are available for an additional $700:
- Moondust Silver
- Magnetic
- Agate Black Metallic
- Digital Aqua Blue (Sport only)
- Grey Matter (Sport only)
Special order paint is a $1400 option, but is offered only on the Trend.
Next steps
Take advantage of Australia's BIGGEST new car website to find a great deal on a Ford Transit Custom.
William Stopford is an automotive journalist based in Brisbane, Australia. William is a Business/Journalism graduate from the Queensland University of Technology who loves to travel, briefly lived in the US, and has a particular interest in the American car industry.
You might also like
Jack Quick
8
2025 Volkswagen Caddy review
The Volkswagen Caddy Maxi people mover offers van practicality with car-like driving dynamics. It doesn't come cheap, however.
6 Months Ago
Jack Quick
7.4
2025 Peugeot E-Expert review
Peugeot currently only offers two EVs in Australia, and its latest electric van costs almost $30,000 more than its diesel-powered counterpart.
5 Months Ago
Matt Campbell
7.8
2025 Renault Kangoo review
This petrol compact French commercial van offers plenty of practicality and usability, but it’s pricey when you add the stuff you want.
5 Months Ago
Max Davies
8
2025 Toyota HiAce review
Toyota's tried and tested van is unchanged for 2025, but the barn door variant is still a great choice in the world of commercial vans.
4 Months Ago
William Stopford
2025 Renault Kangoo price and specs
Renault has added more standard equipment to its smallest van, which is offered in two lengths and with petrol or electric power.
3 Months Ago
Dave Humphreys

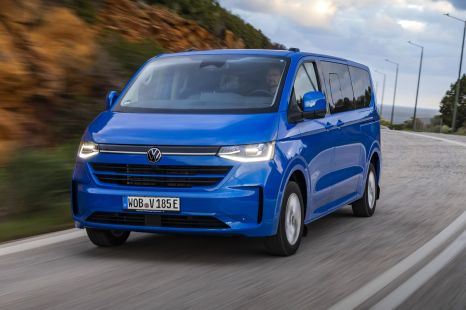

2025 Volkswagen Transporter review: Quick drive
