Overview

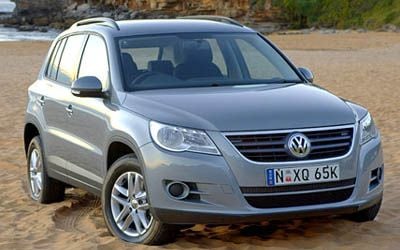

The 2011 Volkswagen Tiguan Base is a four-wheel drive, 5-door SUV that was released to the Australian market on 5th September 2010. The Volkswagen Tiguan is regarded as a small SUV built in Germany and when it was new had prices starting at $36,690.
This Volkswagen Tiguan is powered by a 2.0L 4-cylinder engine that has 103 kW of power (at 4200 rpm) and 320 Nm of torque (at 1750 rpm) via a Six-speed Manual transmission. Volkswagen claims the Tiguan Base uses 6.5L/100km of Diesel in the combined city and highway cycle while putting out 170g of CO2. It has a 64L fuel tank, meaning it should be able to travel 985km per full tank
The Volkswagen Tiguan measures 1683mm (66.3 inches) in height, 4427mm (174.3 inches) in length, 1809mm (71.2 inches) in width with a 2604mm (102.5 inches) wheelbase that brings about a total of 1676kg (3694.9 lbs) of unladen weight. The Tiguan Base comes standard with 235/50 R18 H front tyres and 235/50 R18 H rear tyres. It has a 36 month, 100,000 km warranty.
The 2011 Volkswagen Tiguan Base has a 195mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.
The Volkswagen Tiguan has received a 5 star rating from ANCAP.
Comparative Rating
Quickly see how this car stacks up against its competition. Select any benchmark to see more details.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL COMMON RAIL |
|---|---|
| Size (cc) | 1968 |
| Size (L) | 2.0L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 103kW |
| Power RPM | 4200 |
| Torque | 320Nm |
| Torque RPM | 1750 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 6 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Strut |
| Suspension Rear | Multi-Link |
| Steering Mechanism | - |
| Drive | 4x4 |
| Fuel Combined (L/100km) | 6.5 |
|---|---|
| Fuel Urban (L/100km) | 7.9 |
| Fuel Extra Urban (L/100km) | 5.7 |
| Tank Size (L) | 64 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | 170 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 235/50 R18 H |
| Tyre Rear | 235/50 R18 H |
| Front Rim Size | 8x18 |
| Rear Rim Size | 8x18 |
| Vehicle Height (mm) | 1683 |
|---|---|
| Vehicle Length (mm) | 4427 |
| Vehicle Width (mm) | 1809 |
| Ground Clearance (mm) | 195 |
| Wheelbase (mm) | 2604 |
| Turning Circle (m) | 12000 |
| Unladen Weight (kg) | 1676 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | - |
| Track Front (mm) | 1570 |
| Track Rear (mm) | 1571 |
| Towing Capacity Brake (kg) | 2000 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Germany |
|---|---|
| Number of Doors | 5 |
| Seats | 5 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2010-09-15 |
| ANCAP Rating | 5 |
|---|---|
| Euro Air Pollution Standard | EU5 |
