    Volkswagen Tiguan

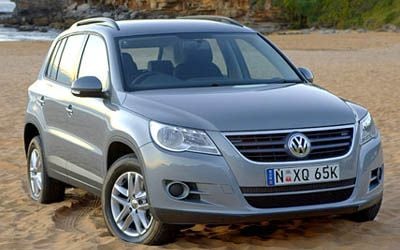

    2009 Volkswagen Tiguan Base Pricing and Spec

    From

    $35,990

    excl. on-roads

    Overview

    The 2009 Volkswagen Tiguan Base is a four-wheel drive, 5-door SUV that was released to the Australian market on 4th January 1970. The Volkswagen Tiguan is regarded as a small SUV built in Germany and when it was new had prices starting at $35,990.

    This Volkswagen Tiguan is powered by a 2.0L 4-cylinder engine that has 103 kW of power (at 4000 rpm) and 320 Nm of torque (at 1750 rpm) via a Six-speed Manual transmission. Volkswagen claims the Tiguan Base uses 7.4L/100km of Diesel in the combined city and highway cycle while putting out 195g of CO2. It has a 64L fuel tank, meaning it should be able to travel 865km per full tank

    The Volkswagen Tiguan measures 1683mm (66.3 inches) in height, 4427mm (174.3 inches) in length, 1809mm (71.2 inches) in width with a 2604mm (102.5 inches) wheelbase that brings about a total of 1676kg (3694.9 lbs) of unladen weight. The Tiguan Base comes standard with 235/50 R18 front tyres and 235/50 R18 rear tyres. It has a 36 month, 100,000 km warranty.

    The 2009 Volkswagen Tiguan Base has a 200mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.

    Best For
    Family
    Towing
    Warranty
    3Years
    or
    100,000km
    Acceleration
    10.5Seconds
    0-100 km/h
    Fuel Efficiency
    7.4L / 100km
    64 L865 km
    5D SUV
    Diesel
    2.0L
    4x4
    6 MT
    5
    5

    Dimensions

    1683mm
    1809mm
    4427mm

    The dimensions shown above are for the base model.

    Specifications

    TypeTURBO DIESEL COMMON RAIL
    Size (cc)1968
    Size (L)2.0L
    Cylinders4
    CamshaftDual Overhead Cam
    Valves/Ports per Cylinder16
    Power103kW
    Power RPM4000
    Torque320Nm
    Torque RPM1750
    Bore Stroke-
    Compression Ratio-

    Transmission6 SP MANUAL
    Final Gear Ratio-
    Suspension FrontStrut
    Suspension RearMulti-Link
    Steering Mechanism-
    Drive4x4

    Fuel Combined (L/100km)7.4
    Fuel Urban (L/100km)-
    Fuel Extra Urban (L/100km)-
    Tank Size (L)64
    Fuel TypeDiesel
    e10 Compatible-
    CO2 Combined195
    CO2 Urban-
    CO2 Extra Urban-

    Brake FrontDISC - VENTILATED
    Brake RearDISC
    Tyre Front235/50 R18
    Tyre Rear235/50 R18
    Front Rim Size8x18
    Rear Rim Size8x18

    Vehicle Height (mm)1683
    Vehicle Length (mm)4427
    Vehicle Width (mm)1809
    Ground Clearance (mm)200
    Wheelbase (mm)2604
    Turning Circle (m)12000
    Unladen Weight (kg)1676
    Gross Combined Weight (kg)-
    Gross Vehicle Weight (kg)-
    Track Front (mm)1570
    Track Rear (mm)1571
    Towing Capacity Brake (kg)2000
    Towing Capacity Unbraked (kg)750

    Country Of OriginGermany
    Number of Doors5
    Seats5
    Service Interval KMs-
    Service Interval Months-
    VIN Location-
    VIN Number-
    Warranty KMs100
    Warranty Months36
    Discontinued Date2008-07-31

    ANCAP Rating-
    Euro Air Pollution StandardEU5
