Overview

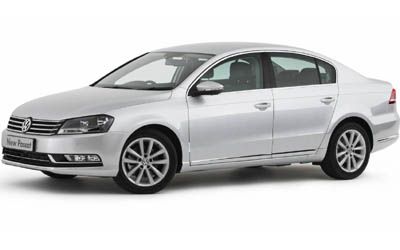

The 2011 Volkswagen Passat Highline is a front-wheel drive, 4-door Sedan that was released to the Australian market on 4th April 2011 classified as a B7. The Volkswagen Passat is regarded as a medium-sized car built in Germany and when it was new had prices starting at $43,990.
This Volkswagen Passat is powered by a 2.0L 4-cylinder engine that has 125 kW of power (at 4200 rpm) and 350 Nm of torque (at 1750 rpm) via a Six-speed Manual transmission. Volkswagen claims the Passat Highline uses 5.7L/100km of Diesel in the combined city and highway cycle while putting out 151g of CO2. It has a 70L fuel tank, meaning it should be able to travel 1228km per full tank
It has a 36 month, 100,000 km warranty.
The Volkswagen Passat has received a 5 star rating from ANCAP.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL COMMON RAIL |
|---|---|
| Size (cc) | 1968 |
| Size (L) | 2.0L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 125kW |
| Power RPM | 4200 |
| Torque | 350Nm |
| Torque RPM | 1750 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 6 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Strut |
| Suspension Rear | Multi-Link |
| Steering Mechanism | - |
| Drive | front |
| Fuel Combined (L/100km) | 5.7 |
|---|---|
| Fuel Urban (L/100km) | 6.7 |
| Fuel Extra Urban (L/100km) | 5 |
| Tank Size (L) | 70 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | 151 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 235/45 ZR17 W |
| Tyre Rear | 235/45 ZR17 W |
| Front Rim Size | 7.5x17 |
| Rear Rim Size | 7.5x17 |
| Vehicle Height (mm) | 1490 |
|---|---|
| Vehicle Length (mm) | 4769 |
| Vehicle Width (mm) | 1820 |
| Ground Clearance (mm) | - |
| Wheelbase (mm) | 2711 |
| Turning Circle (m) | - |
| Unladen Weight (kg) | - |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | - |
| Track Front (mm) | 1552 |
| Track Rear (mm) | 1551 |
| Towing Capacity Brake (kg) | 1500 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Germany |
|---|---|
| Number of Doors | 4 |
| Seats | 5 |
| Service Interval KMs | 15000 |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2011-08-31 |
| ANCAP Rating | 5 |
|---|---|
| Euro Air Pollution Standard | EU5 |
