Overview

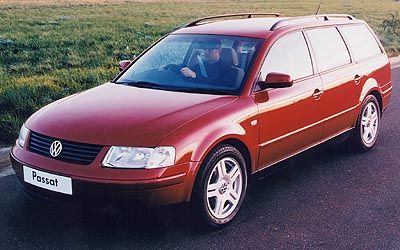

The 2001 Volkswagen Passat Base is a front-wheel drive, 5-door Station Wagon that was released to the Australian market on 4th May 2001. The Volkswagen Passat is regarded as a medium-sized car built in Germany and when it was new had prices starting at $0.
This Volkswagen Passat is powered by a 1.8L 4-cylinder engine that has 110 kW of power (at 5700 rpm) and 210 Nm of torque (at 1750 rpm) via a Five-speed Automatic transmission. It has a 62L fuel tank
The Volkswagen Passat measures 1498mm (59.0 inches) in height, 4682mm (184.3 inches) in length, 1746mm (68.7 inches) in width with a 2703mm (106.4 inches) wheelbase that brings about a total of 1509kg (3326.8 lbs) of unladen weight. The Passat Base comes standard with 205/60 R15 V front tyres and 205/60 R15 V rear tyres. It has a 36 month, 60,000 km warranty.
The 2001 Volkswagen Passat Base has a 124mm ground clearance with a 1300kg braked and 650kg unbraked towing capacity.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO MULTI-POINT INJECTION |
|---|---|
| Size (cc) | 1781 |
| Size (L) | 1.8L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 20 |
| Power | 110kW |
| Power RPM | 5700 |
| Torque | 210Nm |
| Torque RPM | 1750 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 5 SP AUTOMATIC |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Multi-Link |
| Suspension Rear | Torsion Beam |
| Steering Mechanism | - |
| Drive | front |
| Fuel Combined (L/100km) | - |
|---|---|
| Fuel Urban (L/100km) | 9.8 |
| Fuel Extra Urban (L/100km) | 6 |
| Tank Size (L) | 62 |
| Fuel Type | Premium Unleaded |
| e10 Compatible | - |
| CO2 Combined | - |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 205/60 R15 V |
| Tyre Rear | 205/60 R15 V |
| Front Rim Size | 7x15 |
| Rear Rim Size | 7x15 |
| Vehicle Height (mm) | 1498 |
|---|---|
| Vehicle Length (mm) | 4682 |
| Vehicle Width (mm) | 1746 |
| Ground Clearance (mm) | 124 |
| Wheelbase (mm) | 2703 |
| Turning Circle (m) | - |
| Unladen Weight (kg) | 1509 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 1870 |
| Track Front (mm) | 1515 |
| Track Rear (mm) | 1515 |
| Towing Capacity Brake (kg) | 1300 |
| Towing Capacity Unbraked (kg) | 650 |
| Country Of Origin | Germany |
|---|---|
| Number of Doors | 5 |
| Seats | 5 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 60 |
| Warranty Months | 36 |
| Discontinued Date | 2001-06-30 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
