Overview

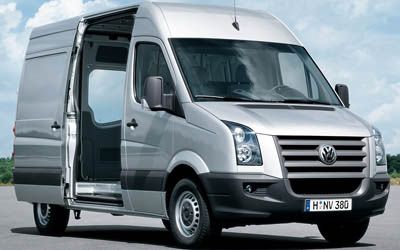

The 2009 Volkswagen Crafter Base is a rear-wheel drive, 5-door Panel Van that was released to the Australian market on 3rd August 2008. The Volkswagen Crafter is regarded as a Van over 3.5t built in Germany and when it was new had prices starting at $49,100.
This Volkswagen Crafter is powered by a 2.5L 4-cylinder engine that has 120 kW of power (at 3500 rpm) and 350 Nm of torque (at 2000 rpm) via a Six-speed Manual transmission. It has a 100L fuel tank
The Volkswagen Crafter measures 2705mm (106.5 inches) in height, 5905mm (232.5 inches) in length, 1993mm (78.5 inches) in width with a 3665mm (144.3 inches) wheelbase that brings about a total of 2030kg (4475.4 lbs) of unladen weight. The Crafter Base comes standard with 225/75 R16 112 ? front tyres and 225/75 R16 112 ? rear tyres. It has a 36 month, 200,000 km warranty.
The 2009 Volkswagen Crafter Base has a 176mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.
Comparative Rating
Quickly see how this car stacks up against its competition. Select any benchmark to see more details.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL COMMON RAIL |
|---|---|
| Size (cc) | 2461 |
| Size (L) | 2.5L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 8 |
| Power | 120kW |
| Power RPM | 3500 |
| Torque | 350Nm |
| Torque RPM | 2000 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 6 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Wishbone |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | rear |
| Fuel Combined (L/100km) | - |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 100 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | - |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 225/75 R16 112 ? |
| Tyre Rear | 225/75 R16 112 ? |
| Front Rim Size | 6.5x16 |
| Rear Rim Size | 6.5x16 |
| Vehicle Height (mm) | 2705 |
|---|---|
| Vehicle Length (mm) | 5905 |
| Vehicle Width (mm) | 1993 |
| Ground Clearance (mm) | 176 |
| Wheelbase (mm) | 3665 |
| Turning Circle (m) | 13600 |
| Unladen Weight (kg) | 2030 |
| Gross Combined Weight (kg) | 5500 |
| Gross Vehicle Weight (kg) | 3550 |
| Track Front (mm) | 1710 |
| Track Rear (mm) | 1716 |
| Towing Capacity Brake (kg) | 2000 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Germany |
|---|---|
| Number of Doors | 5 |
| Seats | 2 |
| Service Interval KMs | 30000 |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 200 |
| Warranty Months | 36 |
| Discontinued Date | 2009-06-21 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | EU4 |
