Overview

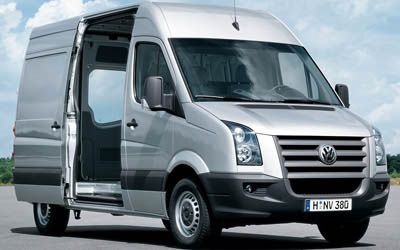

The 2007 Volkswagen Crafter Base is a rear-wheel drive, 5-door Panel Van that was released to the Australian market on 4th February 2007. The Volkswagen Crafter is regarded as a Van over 3.5t built in Germany and when it was new had prices starting at $44,200.
This Volkswagen Crafter is powered by a 2.5L 5-cylinder engine that has 80 kW of power (at 3500 rpm) and 280 Nm of torque (at 2000 rpm) via a Six-speed Manual transmission. It has a 100L fuel tank
The Volkswagen Crafter measures 2705mm (106.5 inches) in height, 5905mm (232.5 inches) in length, 1993mm (78.5 inches) in width with a 3365mm (132.5 inches) wheelbase that brings about a total of 1947kg (4292.4 lbs) of unladen weight. The Crafter Base comes standard with 235/65 R16 112 ? front tyres and 235/65 R16 112 ? rear tyres. It has a 36 month, 100,000 km warranty.
The 2007 Volkswagen Crafter Base has a 176mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL COMMON RAIL |
|---|---|
| Size (cc) | 2461 |
| Size (L) | 2.5L |
| Cylinders | 5 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 10 |
| Power | 80kW |
| Power RPM | 3500 |
| Torque | 280Nm |
| Torque RPM | 2000 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 6 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Wishbone |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | rear |
| Fuel Combined (L/100km) | - |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 100 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | - |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 235/65 R16 112 ? |
| Tyre Rear | 235/65 R16 112 ? |
| Front Rim Size | 6.5x16 |
| Rear Rim Size | 6.5x16 |
| Vehicle Height (mm) | 2705 |
|---|---|
| Vehicle Length (mm) | 5905 |
| Vehicle Width (mm) | 1993 |
| Ground Clearance (mm) | 176 |
| Wheelbase (mm) | 3365 |
| Turning Circle (m) | 13600 |
| Unladen Weight (kg) | 1947 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 3550 |
| Track Front (mm) | 1710 |
| Track Rear (mm) | 1716 |
| Towing Capacity Brake (kg) | 2000 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Germany |
|---|---|
| Number of Doors | 5 |
| Seats | 2 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2007-06-30 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
