Overview

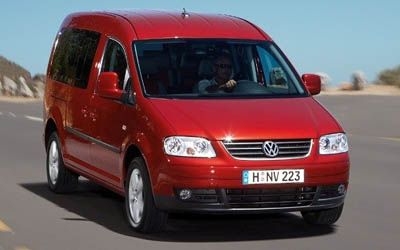

The 2009 Volkswagen Caddy Maxi is a front-wheel drive, 5-door Mini Mpv that was released to the Australian market on 3rd July 2008. The Volkswagen Caddy is regarded as a MPV built in Poland and when it was new had prices starting at $37,990.
This Volkswagen Caddy is powered by a 1.9L 4-cylinder engine that has 77 kW of power (at 4000 rpm) and 250 Nm of torque (at 1900 rpm) via a Six-speed Manual transmission. Volkswagen claims the Caddy Maxi uses 6.8L/100km of Diesel in the combined city and highway cycle while putting out 180g of CO2. It has a 60L fuel tank, meaning it should be able to travel 882km per full tank
The Volkswagen Caddy measures 1834mm (72.2 inches) in height, 4875mm (191.9 inches) in length, 1794mm (70.6 inches) in width with a 3002mm (118.2 inches) wheelbase that brings about a total of 1701kg (3750.1 lbs) of unladen weight. The Caddy Maxi comes standard with 205/55 R16 94H ? front tyres and 205/55 R16 94H ? rear tyres. It has a 36 month, 100,000 km warranty.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO PUMP INJECTION |
|---|---|
| Size (cc) | 1896 |
| Size (L) | 1.9L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 8 |
| Power | 77kW |
| Power RPM | 4000 |
| Torque | 250Nm |
| Torque RPM | 1900 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 6 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Strut |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | front |
| Fuel Combined (L/100km) | 6.8 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 60 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | 180 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 205/55 R16 94H ? |
| Tyre Rear | 205/55 R16 94H ? |
| Front Rim Size | 6x16 |
| Rear Rim Size | 6x16 |
| Vehicle Height (mm) | 1834 |
|---|---|
| Vehicle Length (mm) | 4875 |
| Vehicle Width (mm) | 1794 |
| Ground Clearance (mm) | - |
| Wheelbase (mm) | 3002 |
| Turning Circle (m) | - |
| Unladen Weight (kg) | 1701 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | - |
| Track Front (mm) | 1537 |
| Track Rear (mm) | 1544 |
| Towing Capacity Brake (kg) | 1430 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Poland |
|---|---|
| Number of Doors | 5 |
| Seats | 7 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2009-06-21 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | EU4 |
