Overview

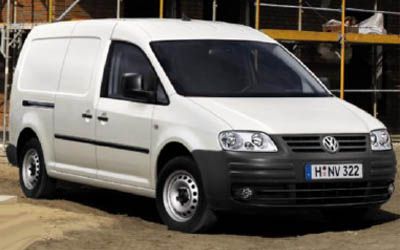

The 2009 Volkswagen Caddy Base is a front-wheel drive, 5-door Car Van that was released to the Australian market on 4th August 2008. The Volkswagen Caddy is regarded as a Van under 3.5t built in Poland and when it was new had prices starting at $24,740.
This Volkswagen Caddy is powered by a 1.6L 4-cylinder engine that has 75 kW of power (at 5600 rpm) and 148 Nm of torque (at 3800 rpm) via a Five-speed Manual transmission. Volkswagen claims the Caddy Base uses 8.2L/100km of Premium Unleaded in the combined city and highway cycle while putting out 195g of CO2. It has a 60L fuel tank, meaning it should be able to travel 732km per full tank
The Volkswagen Caddy measures 1841mm (72.5 inches) in height, 4875mm (191.9 inches) in length, 1794mm (70.6 inches) in width with a 3002mm (118.2 inches) wheelbase that brings about a total of 1432kg (3157.0 lbs) of unladen weight. The Caddy Base comes standard with 195/65 R15 95 ? front tyres and 195/65 R15 95 ? rear tyres. It has a 36 month, 100,000 km warranty.
The 2009 Volkswagen Caddy Base has a 175mm ground clearance with a 1300kg braked and 710kg unbraked towing capacity.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | MULTI-POINT INJECTION |
|---|---|
| Size (cc) | 1598 |
| Size (L) | 1.6L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 8 |
| Power | 75kW |
| Power RPM | 5600 |
| Torque | 148Nm |
| Torque RPM | 3800 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 5 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Strut |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | front |
| Fuel Combined (L/100km) | 8.2 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 60 |
| Fuel Type | Premium Unleaded |
| e10 Compatible | - |
| CO2 Combined | 195 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 195/65 R15 95 ? |
| Tyre Rear | 195/65 R15 95 ? |
| Front Rim Size | 6x15 |
| Rear Rim Size | 6x15 |
| Vehicle Height (mm) | 1841 |
|---|---|
| Vehicle Length (mm) | 4875 |
| Vehicle Width (mm) | 1794 |
| Ground Clearance (mm) | 175 |
| Wheelbase (mm) | 3002 |
| Turning Circle (m) | - |
| Unladen Weight (kg) | 1432 |
| Gross Combined Weight (kg) | 3300 |
| Gross Vehicle Weight (kg) | 2245 |
| Track Front (mm) | 1537 |
| Track Rear (mm) | 1544 |
| Towing Capacity Brake (kg) | 1300 |
| Towing Capacity Unbraked (kg) | 710 |
| Country Of Origin | Poland |
|---|---|
| Number of Doors | 5 |
| Seats | 2 |
| Service Interval KMs | 15000 |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2009-06-21 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | EU4 |
