Overview

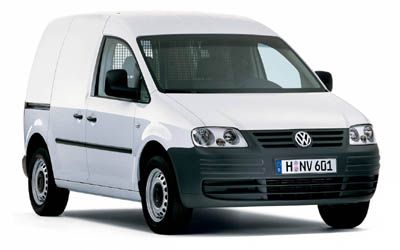

The 2009 Volkswagen Caddy Base is a front-wheel drive, 4-door Car Van that was released to the Australian market on 4th August 2008. The Volkswagen Caddy is regarded as a Van under 3.5t built in Poland and when it was new had prices starting at $25,990.
This Volkswagen Caddy is powered by a 1.9L 4-cylinder engine that has 77 kW of power (at 4000 rpm) and 250 Nm of torque (at 1900 rpm) via a Five-speed Manual transmission. Volkswagen claims the Caddy Base uses 6.2L/100km of Diesel in the combined city and highway cycle while putting out 161g of CO2. It has a 60L fuel tank, meaning it should be able to travel 968km per full tank
The Volkswagen Caddy measures 1833mm (72.2 inches) in height, 4405mm (173.4 inches) in length, 1794mm (70.6 inches) in width with a 2682mm (105.6 inches) wheelbase that brings about a total of 1505kg (3318.0 lbs) of unladen weight. The Caddy Base comes standard with 195/65 R15 91 ? front tyres and 195/65 R15 91 ? rear tyres. It has a 36 month, 100,000 km warranty.
The 2009 Volkswagen Caddy Base has a 176mm ground clearance with a 1500kg braked and 740kg unbraked towing capacity.
Comparative Rating
Quickly see how this car stacks up against its competition. Select any benchmark to see more details.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO PUMP INJECTION |
|---|---|
| Size (cc) | 1896 |
| Size (L) | 1.9L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 8 |
| Power | 77kW |
| Power RPM | 4000 |
| Torque | 250Nm |
| Torque RPM | 1900 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 5 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Strut |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | front |
| Fuel Combined (L/100km) | 6.2 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 60 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | 161 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 195/65 R15 91 ? |
| Tyre Rear | 195/65 R15 91 ? |
| Front Rim Size | 6x15 |
| Rear Rim Size | 6x15 |
| Vehicle Height (mm) | 1833 |
|---|---|
| Vehicle Length (mm) | 4405 |
| Vehicle Width (mm) | 1794 |
| Ground Clearance (mm) | 176 |
| Wheelbase (mm) | 2682 |
| Turning Circle (m) | - |
| Unladen Weight (kg) | 1505 |
| Gross Combined Weight (kg) | 3600 |
| Gross Vehicle Weight (kg) | 2235 |
| Track Front (mm) | 1537 |
| Track Rear (mm) | 1531 |
| Towing Capacity Brake (kg) | 1500 |
| Towing Capacity Unbraked (kg) | 740 |
| Country Of Origin | Poland |
|---|---|
| Number of Doors | 4 |
| Seats | 2 |
| Service Interval KMs | 15000 |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2009-06-21 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | EU4 |
