Overview

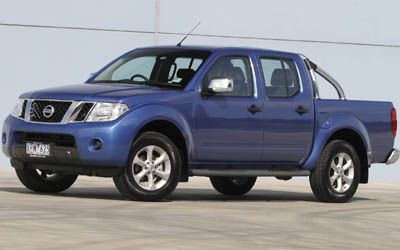

The 2010 Nissan Navara ST-X is a four-wheel drive, Double Cab Utility that was released to the Australian market on 3rd March 2010 classified as a D40. The Nissan Navara is regarded as a Pick-up or Cab Chassis 4x4 built in Spain and when it was new had prices starting at $50,240.
This Nissan Navara is powered by a 4.0L 6-cylinder engine that has 198 kW of power (at 5600 rpm) and 385 Nm of torque (at 4000 rpm) via a Five-speed Automatic transmission. Nissan claims the Navara ST-X uses 14L/100km of Unleaded in the combined city and highway cycle while putting out 339g of CO2. It has a 80L fuel tank, meaning it should be able to travel 571km per full tank
The Nissan Navara measures 1779mm (70.0 inches) in height, 5300mm (208.7 inches) in length, 1850mm (72.8 inches) in width with a 3200mm (126.0 inches) wheelbase that brings about a total of 1950kg (4299.0 lbs) of unladen weight. The Navara ST-X comes standard with 255/65 R17 front tyres and 255/65 R17 rear tyres. It has a 36 month, 100,000 km warranty.
The 2010 Nissan Navara ST-X has a 217mm ground clearance with a 3000kg braked and 750kg unbraked towing capacity.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | MULTI-POINT INJECTION |
|---|---|
| Size (cc) | 3954 |
| Size (L) | 4.0L |
| Cylinders | 6 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 24 |
| Power | 198kW |
| Power RPM | 5600 |
| Torque | 385Nm |
| Torque RPM | 4000 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 5 SP AUTOMATIC |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Wishbone |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | 4x4 |
| Fuel Combined (L/100km) | 14 |
|---|---|
| Fuel Urban (L/100km) | 19.4 |
| Fuel Extra Urban (L/100km) | 10.9 |
| Tank Size (L) | 80 |
| Fuel Type | Unleaded |
| e10 Compatible | - |
| CO2 Combined | 339 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DRUM |
| Tyre Front | 255/65 R17 |
| Tyre Rear | 255/65 R17 |
| Front Rim Size | - |
| Rear Rim Size | - |
| Vehicle Height (mm) | 1779 |
|---|---|
| Vehicle Length (mm) | 5300 |
| Vehicle Width (mm) | 1850 |
| Ground Clearance (mm) | 217 |
| Wheelbase (mm) | 3200 |
| Turning Circle (m) | 13300 |
| Unladen Weight (kg) | 1950 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 2805 |
| Track Front (mm) | 1570 |
| Track Rear (mm) | 1570 |
| Towing Capacity Brake (kg) | 3000 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Spain |
|---|---|
| Number of Doors | 4 |
| Seats | 5 |
| Service Interval KMs | 10000 |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2010-04-30 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | EU4 |
