Overview

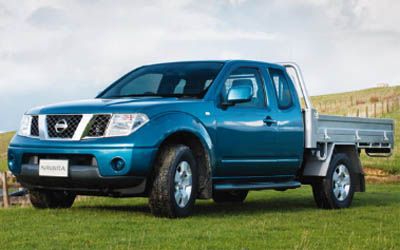

The 2010 Nissan Navara RX is a four-wheel drive, Extended Cab Chassis that was released to the Australian market on 3rd March 2010 classified as a D40. The Nissan Navara is regarded as a Pick-up or Cab Chassis 4x4 built in Thailand and when it was new had prices starting at $41,860.
This Nissan Navara is powered by a 2.5L 4-cylinder engine that has 126 kW of power (at 4000 rpm) and 403 Nm of torque (at 2000 rpm) via a Five-speed Automatic transmission. Nissan claims the Navara RX uses 10.5L/100km of Diesel in the combined city and highway cycle while putting out 193g of CO2. It has a 80L fuel tank, meaning it should be able to travel 762km per full tank
The Nissan Navara measures 1770mm (69.7 inches) in height, 5125mm (201.8 inches) in length, 1850mm (72.8 inches) in width with a 3200mm (126.0 inches) wheelbase that brings about a total of 1836kg (4047.7 lbs) of unladen weight. The Navara RX comes standard with 255/70 R16 111 front tyres and 255/70 R16 111 rear tyres. It has a 36 month, 100,000 km warranty.
The 2010 Nissan Navara RX has a 205mm ground clearance with a 3000kg braked and 750kg unbraked towing capacity.
Comparative Rating
Quickly see how this car stacks up against its competition. Select any benchmark to see more details.
Towing & Off-Road Capability
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL COMMON RAIL |
|---|---|
| Size (cc) | 2488 |
| Size (L) | 2.5L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 126kW |
| Power RPM | 4000 |
| Torque | 403Nm |
| Torque RPM | 2000 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 5 SP AUTOMATIC |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Wishbone |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | 4x4 |
| Fuel Combined (L/100km) | 10.5 |
|---|---|
| Fuel Urban (L/100km) | 12.7 |
| Fuel Extra Urban (L/100km) | 9.2 |
| Tank Size (L) | 80 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | 193 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DRUM |
| Tyre Front | 255/70 R16 111 |
| Tyre Rear | 255/70 R16 111 |
| Front Rim Size | 7x16 |
| Rear Rim Size | 7x16 |
| Vehicle Height (mm) | 1770 |
|---|---|
| Vehicle Length (mm) | 5125 |
| Vehicle Width (mm) | 1850 |
| Ground Clearance (mm) | 205 |
| Wheelbase (mm) | 3200 |
| Turning Circle (m) | 13200 |
| Unladen Weight (kg) | 1836 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 2860 |
| Track Front (mm) | 1570 |
| Track Rear (mm) | 1570 |
| Towing Capacity Brake (kg) | 3000 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Thailand |
|---|---|
| Number of Doors | 4 |
| Seats | 4 |
| Service Interval KMs | 10000 |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2011-01-26 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | EU4 |
