Overview

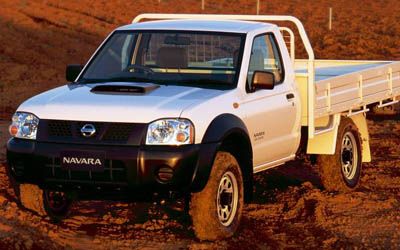

The 2009 Nissan Navara DX is a four-wheel drive, Single Cab Chassis that was released to the Australian market on 4th January 2009 classified as a D22. The Nissan Navara is regarded as a Pick-up or Cab Chassis 4x4 built in Japan and when it was new had prices starting at $31,935.
This Nissan Navara is powered by a 2.5L 4-cylinder engine that has 98 kW of power (at 3600 rpm) and 304 Nm of torque (at 2000 rpm) via a Five-speed Manual transmission. Nissan claims the Navara DX uses 9.1L/100km of Diesel in the combined city and highway cycle while putting out 241g of CO2. It has a 80L fuel tank, meaning it should be able to travel 879km per full tank
It has a 36 month, 100,000 km warranty.
The 2009 Nissan Navara DX has a 220mm ground clearance with a 2800kg braked and 750kg unbraked towing capacity.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL COMMON RAIL |
|---|---|
| Size (cc) | 2488 |
| Size (L) | 2.5L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 98kW |
| Power RPM | 3600 |
| Torque | 304Nm |
| Torque RPM | 2000 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 5 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Wishbone |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | 4x4 |
| Fuel Combined (L/100km) | 9.1 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 80 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | 241 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DRUM |
| Tyre Front | - |
| Tyre Rear | - |
| Front Rim Size | 6x16 |
| Rear Rim Size | 6x16 |
| Vehicle Height (mm) | 1705 |
|---|---|
| Vehicle Length (mm) | 4795 |
| Vehicle Width (mm) | 1825 |
| Ground Clearance (mm) | 220 |
| Wheelbase (mm) | 2950 |
| Turning Circle (m) | 12000 |
| Unladen Weight (kg) | 1690 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 2920 |
| Track Front (mm) | 1525 |
| Track Rear (mm) | 1505 |
| Towing Capacity Brake (kg) | 2800 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Japan |
|---|---|
| Number of Doors | 2 |
| Seats | 3 |
| Service Interval KMs | 10000 |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2009-03-11 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | EU4 |
