Overview

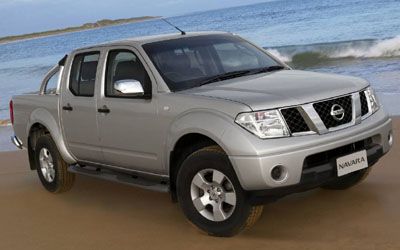

The 2006 Nissan Navara ST-X is a four-wheel drive, Double Cab Utility that was released to the Australian market on 1st November 2005 classified as a D40. The Nissan Navara is regarded as a Pick-up or Cab Chassis 4x4 built in Spain and when it was new had prices starting at $43,990.
This Nissan Navara is powered by a 4.0L 6-cylinder engine that has 198 kW of power (at 5600 rpm) and 385 Nm of torque (at 4000 rpm) via a Six-speed Manual transmission. Nissan claims the Navara ST-X uses 13.6L/100km of Unleaded in the combined city and highway cycle while putting out 329g of CO2. It has a 80L fuel tank, meaning it should be able to travel 588km per full tank
The Nissan Navara measures 1774mm (69.8 inches) in height, 5220mm (205.5 inches) in length, 1850mm (72.8 inches) in width with a 3200mm (126.0 inches) wheelbase that brings about a total of 1992kg (4391.6 lbs) of unladen weight. The Navara ST-X comes standard with 255/70 R16 front tyres and 255/70 R16 111 rear tyres. It has a 36 month, 100,000 km warranty.
The 2006 Nissan Navara ST-X has a 233mm ground clearance with a 3000kg braked and 750kg unbraked towing capacity.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | MULTI-POINT INJECTION |
|---|---|
| Size (cc) | 3954 |
| Size (L) | 4.0L |
| Cylinders | 6 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 24 |
| Power | 198kW |
| Power RPM | 5600 |
| Torque | 385Nm |
| Torque RPM | 4000 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 6 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Wishbone |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | 4x4 |
| Fuel Combined (L/100km) | 13.6 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 80 |
| Fuel Type | Unleaded |
| e10 Compatible | - |
| CO2 Combined | 329 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DRUM |
| Tyre Front | 255/70 R16 |
| Tyre Rear | 255/70 R16 111 |
| Front Rim Size | 7x16 |
| Rear Rim Size | 7x16 |
| Vehicle Height (mm) | 1774 |
|---|---|
| Vehicle Length (mm) | 5220 |
| Vehicle Width (mm) | 1850 |
| Ground Clearance (mm) | 233 |
| Wheelbase (mm) | 3200 |
| Turning Circle (m) | 13300 |
| Unladen Weight (kg) | 1992 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 2805 |
| Track Front (mm) | 1570 |
| Track Rear (mm) | 1570 |
| Towing Capacity Brake (kg) | 3000 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Spain |
|---|---|
| Number of Doors | 4 |
| Seats | 5 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2006-08-31 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
