Overview

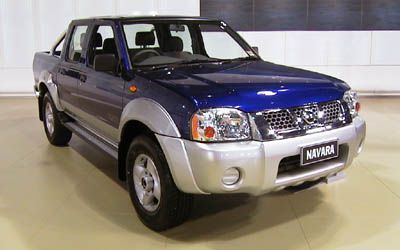

The 2004 Nissan Navara ST-R is a four-wheel drive, Double Cab Utility that was released to the Australian market on 4th May 2004 classified as a 2002 Series 3. The Nissan Navara is regarded as a Pick-up or Cab Chassis 4x4 built in Japan and when it was new had prices starting at $43,490.
This Nissan Navara is powered by a 3.0L 4-cylinder engine that has 110 kW of power (at 3400 rpm) and 314 Nm of torque (at 2000 rpm) via a Five-speed Manual transmission. It has a 75L fuel tank
The Nissan Navara measures 1725mm (67.9 inches) in height, 5080mm (200.0 inches) in length, 1825mm (71.9 inches) in width with a 2950mm (116.1 inches) wheelbase that brings about a total of 1950kg (4299.0 lbs) of unladen weight. The Navara ST-R comes standard with 265/70 R16 front tyres and 265/70 R16 rear tyres. It has a 36 month, 100,000 km warranty.
The 2004 Nissan Navara ST-R has a 220mm ground clearance with a 2800kg braked and 750kg unbraked towing capacity.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL DIRECT INJECTION |
|---|---|
| Size (cc) | 2953 |
| Size (L) | 3.0L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 110kW |
| Power RPM | 3400 |
| Torque | 314Nm |
| Torque RPM | 2000 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 5 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Wishbone |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | 4x4 |
| Fuel Combined (L/100km) | - |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 75 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | - |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DRUM |
| Tyre Front | 265/70 R16 |
| Tyre Rear | 265/70 R16 |
| Front Rim Size | 7x16 |
| Rear Rim Size | 7x16 |
| Vehicle Height (mm) | 1725 |
|---|---|
| Vehicle Length (mm) | 5080 |
| Vehicle Width (mm) | 1825 |
| Ground Clearance (mm) | 220 |
| Wheelbase (mm) | 2950 |
| Turning Circle (m) | 12000 |
| Unladen Weight (kg) | 1950 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 2920 |
| Track Front (mm) | 1525 |
| Track Rear (mm) | 1505 |
| Towing Capacity Brake (kg) | 2800 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Japan |
|---|---|
| Number of Doors | 4 |
| Seats | 5 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2005-02-20 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
