Overview

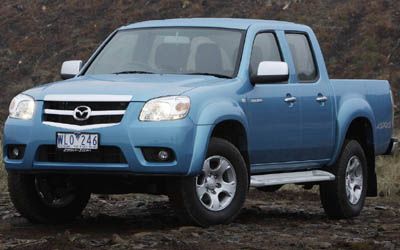

The 2009 Mazda BT-50 SDX is a four-wheel drive, Double Cab Utility that was released to the Australian market on 2nd January 2009. The Mazda BT-50 is regarded as a Pick-up or Cab Chassis 4x4 built in Thailand and when it was new had prices starting at $44,690.
This Mazda BT-50 is powered by a 3.0L 4-cylinder engine that has 115 kW of power (at 3200 rpm) and 380 Nm of torque (at 1800 rpm) via a Five-speed Manual transmission. Mazda claims the BT-50 SDX uses 9.2L/100km of Diesel in the combined city and highway cycle while putting out 243g of CO2. It has a 70L fuel tank, meaning it should be able to travel 761km per full tank
The Mazda BT-50 measures 1762mm (69.4 inches) in height, 5169mm (203.5 inches) in length, 1807mm (71.1 inches) in width with a 3000mm (118.1 inches) wheelbase that brings about a total of 1867kg (4116.0 lbs) of unladen weight. The BT-50 SDX comes standard with 245/70 R16 111 ? front tyres and 245/70 R16 111 ? rear tyres. It has a 36 month, 100,000 km warranty.
The 2009 Mazda BT-50 SDX has a 207mm ground clearance with a 3000kg braked and 750kg unbraked towing capacity.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL COMMON RAIL |
|---|---|
| Size (cc) | 2953 |
| Size (L) | 3.0L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 115kW |
| Power RPM | 3200 |
| Torque | 380Nm |
| Torque RPM | 1800 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 5 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Wishbone |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | 4x4 |
| Fuel Combined (L/100km) | 9.2 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 70 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | 243 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DRUM |
| Tyre Front | 245/70 R16 111 ? |
| Tyre Rear | 245/70 R16 111 ? |
| Front Rim Size | 7x16 |
| Rear Rim Size | 7x16 |
| Vehicle Height (mm) | 1762 |
|---|---|
| Vehicle Length (mm) | 5169 |
| Vehicle Width (mm) | 1807 |
| Ground Clearance (mm) | 207 |
| Wheelbase (mm) | 3000 |
| Turning Circle (m) | 12600 |
| Unladen Weight (kg) | 1867 |
| Gross Combined Weight (kg) | 5500 |
| Gross Vehicle Weight (kg) | 3039 |
| Track Front (mm) | 1475 |
| Track Rear (mm) | 1470 |
| Towing Capacity Brake (kg) | 3000 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Thailand |
|---|---|
| Number of Doors | 4 |
| Seats | 5 |
| Service Interval KMs | 10000 |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2009-03-31 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | EU4 |
