Overview

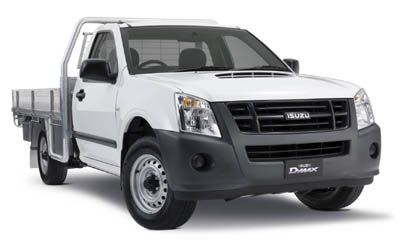

The 2012 Isuzu D-Max SX is a rear-wheel drive, Single Cab Chassis that was released to the Australian market on 2nd May 2010 classified as a TF. The Isuzu D-Max is regarded as a Pick-up or Cab Chassis 4x2 built in Thailand and when it was new had prices starting at $25,100.
This Isuzu D-Max is powered by a 3.0L 4-cylinder engine that has 120 kW of power (at 3600 rpm) and 360 Nm of torque (at 1800 rpm) via a Five-speed Manual transmission. Isuzu claims the D-Max SX uses 7.9L/100km of Diesel in the combined city and highway cycle while putting out 208g of CO2. It has a 76L fuel tank, meaning it should be able to travel 962km per full tank
The Isuzu D-Max measures 1635mm (64.4 inches) in height, 5025mm (197.8 inches) in length, 1720mm (67.7 inches) in width with a 3200mm (126.0 inches) wheelbase that brings about a total of 1505kg (3318.0 lbs) of unladen weight. The D-Max SX comes standard with 215/70 R15 104 yes front tyres and 215/70 R15 104 yes rear tyres. It has a 36 month, 100,000 km warranty.
The 2012 Isuzu D-Max SX has a 195mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity.
The Isuzu D-Max has received a 3 star rating from ANCAP.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL COMMON RAIL |
|---|---|
| Size (cc) | 2999 |
| Size (L) | 3.0L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 120kW |
| Power RPM | 3600 |
| Torque | 360Nm |
| Torque RPM | 1800 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 5 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Wishbone |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | rear |
| Fuel Combined (L/100km) | 7.9 |
|---|---|
| Fuel Urban (L/100km) | 10.4 |
| Fuel Extra Urban (L/100km) | 6.5 |
| Tank Size (L) | 76 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | 208 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DRUM |
| Tyre Front | 215/70 R15 104 yes |
| Tyre Rear | 215/70 R15 104 yes |
| Front Rim Size | 6.5x15 |
| Rear Rim Size | 6.5x15 |
| Vehicle Height (mm) | 1635 |
|---|---|
| Vehicle Length (mm) | 5025 |
| Vehicle Width (mm) | 1720 |
| Ground Clearance (mm) | 195 |
| Wheelbase (mm) | 3200 |
| Turning Circle (m) | 12400 |
| Unladen Weight (kg) | 1505 |
| Gross Combined Weight (kg) | 5300 |
| Gross Vehicle Weight (kg) | 2800 |
| Track Front (mm) | 1460 |
| Track Rear (mm) | 1460 |
| Towing Capacity Brake (kg) | 2500 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Thailand |
|---|---|
| Number of Doors | 2 |
| Seats | 2 |
| Service Interval KMs | 10000 |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2012-06-19 |
| ANCAP Rating | 3 |
|---|---|
| Euro Air Pollution Standard | EU4 |
