Overview

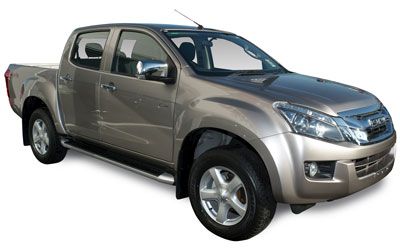

The 2012 Isuzu D-Max LS-U is a four-wheel drive Double Cab Utility that was released to the Australian market on 172nd June 2012 classified as a null. The Isuzu D-Max is regarded as a double cab utility built in Thailand with prices from a dealer as a used car starting at $45,500.
The Isuzu D-Max is a four-wheel drive 4 door with 5 seats, powered by a 3.0L 4 engine that has 130 kW of power (at 3600 rpm) and 380 Nm of torque (at 1800 rpm) via a Five-speed Manual. Isuzu claims the D-Max LS-U uses 8.3L/100km of diesel in the combined city and highway cycle while putting out 220g of CO2. It has a 76L fuel tank, meaning it should be able to travel 916km per full tank.
The Isuzu D-Max measures 1795mm (70.7 inches) in height, 5295mm (208.5 inches) in length, 1860mm (73.2 inches) in width with a 3095mm (121.9 inches) wheelbase that brings about a total of 1935kg (4265.9 lbs) of unladen weight. The D-Max LS-U comes standard with 255/65 R front tyres and 255/65 R rear tyres. It has a 36 month, 100,000kmkm warranty.
The 2012 Isuzu D-Max LS-U has a 235mm ground clearance with a 3000kg braked and 750kg unbraked towing capacity.
The Isuzu D-Max has received a 4 star rating from ANCAP.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL COMMON RAIL |
|---|---|
| Size (cc) | 2999 |
| Size (L) | 3.0L |
| Cylinders | 4 |
| Camshaft | DUAL OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 130kW |
| Power RPM | 3600 |
| Torque | 380Nm |
| Torque RPM | 1800 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 5 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | wishbone |
| Suspension Rear | beam |
| Steering Mechanism | HYDRAULIC POWER STEERING |
| Drive | 4x4 |
| Fuel Combined (L/100km) | 8.3 |
|---|---|
| Fuel Urban (L/100km) | 10.6 |
| Fuel Extra Urban (L/100km) | 7 |
| Tank Size (L) | 76 |
| Fuel Type | diesel |
| e10 Compatible | - |
| CO2 Combined | 220 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DRUM |
| Tyre Front | 255/65 R |
| Tyre Rear | 255/65 R |
| Front Rim Size | 7x17 |
| Rear Rim Size | 7x17 |
| Vehicle Height (mm) | 1795 |
|---|---|
| Vehicle Length (mm) | 5295 |
| Vehicle Width (mm) | 1860 |
| Ground Clearance (mm) | 235 |
| Wheelbase (mm) | 3095 |
| Turning Circle (m) | 12600 |
| Unladen Weight (kg) | 1935 |
| Gross Combined Weight (kg) | 5950 |
| Gross Vehicle Weight (kg) | 2950 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 3000 |
| Towing Capacity Unbraked (kg) | 750 |
| Compliance Plate Location | - |
|---|---|
| Country Of Origin | Thailand |
| Number of Doors | 4 |
| Seats | 5 |
| Service Interval KMs | 10000 |
| Service Interval Months | 0 |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2012-12-31 |
| ANCAP Rating | 4 |
|---|---|
| Euro Air Pollution Standard | EU4 |
