Overview

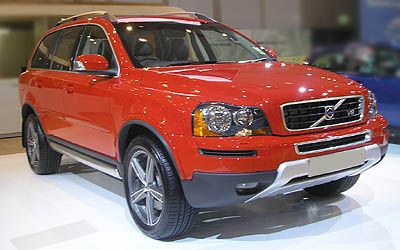

The 2009 Volvo XC90 R-Design is a four-wheel drive, 5-door SUV that was released to the Australian market on 4th October 2008. The Volvo XC90 is regarded as a SUV Large Luxury built in Sweden and when it was new had prices starting at $76,950.
This Volvo XC90 is powered by a 3.2L 6-cylinder engine that has 175 kW of power (at 6200 rpm) and 320 Nm of torque (at 3200 rpm) via a Six-speed Automatic transmission. Volvo claims the XC90 R-Design uses 12.1L/100km of Premium Unleaded in the combined city and highway cycle while putting out 289g of CO2. It has a 80L fuel tank, meaning it should be able to travel 661km per full tank
The Volvo XC90 measures 1784mm (70.2 inches) in height, 4807mm (189.3 inches) in length, 1909mm (75.2 inches) in width with a 2857mm (112.5 inches) wheelbase that brings about a total of 2069kg (4561.4 lbs) of unladen weight. The XC90 R-Design comes standard with 255/50 R19 ? front tyres and 255/50 R19 ? rear tyres. It has a 36 month, unlimited km warranty.
The 2009 Volvo XC90 R-Design has a 218mm ground clearance with a 2250kg braked and 750kg unbraked towing capacity.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | MULTI-POINT INJECTION |
|---|---|
| Size (cc) | 3192 |
| Size (L) | 3.2L |
| Cylinders | 6 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 24 |
| Power | 175kW |
| Power RPM | 6200 |
| Torque | 320Nm |
| Torque RPM | 3200 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 6 SP AUTOMATIC |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Strut |
| Suspension Rear | Multi-Link |
| Steering Mechanism | POWER STEERING |
| Drive | 4x4 |
| Fuel Combined (L/100km) | 12.1 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 80 |
| Fuel Type | Premium Unleaded |
| e10 Compatible | - |
| CO2 Combined | 289 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC - VENTILATED |
| Tyre Front | 255/50 R19 ? |
| Tyre Rear | 255/50 R19 ? |
| Front Rim Size | 8x19 |
| Rear Rim Size | 8x19 |
| Vehicle Height (mm) | 1784 |
|---|---|
| Vehicle Length (mm) | 4807 |
| Vehicle Width (mm) | 1909 |
| Ground Clearance (mm) | 218 |
| Wheelbase (mm) | 2857 |
| Turning Circle (m) | 12500 |
| Unladen Weight (kg) | 2069 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 2750 |
| Track Front (mm) | 1634 |
| Track Rear (mm) | 1624 |
| Towing Capacity Brake (kg) | 2250 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Sweden |
|---|---|
| Number of Doors | 5 |
| Seats | 7 |
| Service Interval KMs | 15000 |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | - |
| Warranty Months | 36 |
| Discontinued Date | 2009-02-01 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
