Overview

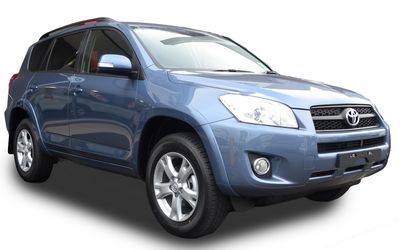

The 2010 Toyota RAV4 Cruiser is a four-wheel drive, 5-door SUV that was released to the Australian market on 1st June 2009 classified as a ACA33R. The Toyota RAV4 is regarded as a small SUV built in Japan and when it was new had prices starting at $38,790.
This Toyota RAV4 is powered by a 2.4L 4-cylinder engine that has 125 kW of power (at 6000 rpm) and 224 Nm of torque (at 4000 rpm) via a Five-speed Manual transmission. Toyota claims the RAV4 Cruiser uses 9.1L/100km of Unleaded in the combined city and highway cycle while putting out 213g of CO2. It has a 60L fuel tank, meaning it should be able to travel 659km per full tank
The Toyota RAV4 measures 1730mm (68.1 inches) in height, 4600mm (181.1 inches) in length, 1855mm (73.0 inches) in width with a 2660mm (104.7 inches) wheelbase that brings about a total of 1550kg (3417.2 lbs) of unladen weight. The RAV4 Cruiser comes standard with 225/65 R17 101H front tyres and 225/65 R17 101H rear tyres. It has a 36 month, 100,000 km warranty.
The 2010 Toyota RAV4 Cruiser has a 195mm ground clearance with a 1500kg braked and 750kg unbraked towing capacity.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | MULTI-POINT INJECTION |
|---|---|
| Size (cc) | 2362 |
| Size (L) | 2.4L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 125kW |
| Power RPM | 6000 |
| Torque | 224Nm |
| Torque RPM | 4000 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 5 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Strut |
| Suspension Rear | Trailing Arm |
| Steering Mechanism | - |
| Drive | 4x4 |
| Fuel Combined (L/100km) | 9.1 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 60 |
| Fuel Type | Unleaded |
| e10 Compatible | - |
| CO2 Combined | 213 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 225/65 R17 101H |
| Tyre Rear | 225/65 R17 101H |
| Front Rim Size | 7x17 |
| Rear Rim Size | 7x17 |
| Vehicle Height (mm) | 1730 |
|---|---|
| Vehicle Length (mm) | 4600 |
| Vehicle Width (mm) | 1855 |
| Ground Clearance (mm) | 195 |
| Wheelbase (mm) | 2660 |
| Turning Circle (m) | 10600 |
| Unladen Weight (kg) | 1550 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | - |
| Track Front (mm) | 1560 |
| Track Rear (mm) | 1560 |
| Towing Capacity Brake (kg) | 1500 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Japan |
|---|---|
| Number of Doors | 5 |
| Seats | 5 |
| Service Interval KMs | 10000 |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2010-02-15 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
