Overview

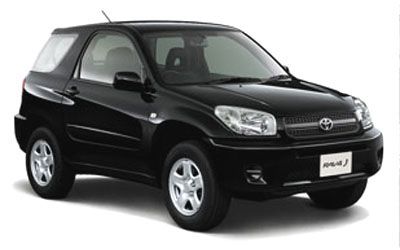

The 2004 Toyota RAV4 CV is a four-wheel drive, 3-door SUV that was released to the Australian market on 2nd September 2003. The Toyota RAV4 is regarded as a small SUV built in Japan and when it was new had prices starting at $28,530.
This Toyota RAV4 is powered by a 2.4L 4-cylinder engine that has 120 kW of power (at 5700 rpm) and 224 Nm of torque (at 4000 rpm) via a Five-speed Manual transmission. Toyota claims the RAV4 CV uses 9.3L/100km of Unleaded in the combined city and highway cycle while putting out nullg of CO2. It has a 57L fuel tank, meaning it should be able to travel 613km per full tank
The Toyota RAV4 measures 1665mm (65.6 inches) in height, 3860mm (152.0 inches) in length, 1735mm (68.3 inches) in width with a 2280mm (89.8 inches) wheelbase that brings about a total of 1278kg (2817.5 lbs) of unladen weight. The RAV4 CV comes standard with 215/70 R16 H front tyres and 215/70 R16 H rear tyres. It has a 36 month, 100,000 km warranty.
The 2004 Toyota RAV4 CV has a 190mm ground clearance with a 1500kg braked and 750kg unbraked towing capacity.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | MULTI-POINT INJECTION |
|---|---|
| Size (cc) | 2362 |
| Size (L) | 2.4L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 120kW |
| Power RPM | 5700 |
| Torque | 224Nm |
| Torque RPM | 4000 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 5 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Strut |
| Suspension Rear | Trailing Arm |
| Steering Mechanism | - |
| Drive | 4x4 |
| Fuel Combined (L/100km) | 9.3 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 57 |
| Fuel Type | Unleaded |
| e10 Compatible | - |
| CO2 Combined | - |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 215/70 R16 H |
| Tyre Rear | 215/70 R16 H |
| Front Rim Size | 6.5x16 |
| Rear Rim Size | 6.5x16 |
| Vehicle Height (mm) | 1665 |
|---|---|
| Vehicle Length (mm) | 3860 |
| Vehicle Width (mm) | 1735 |
| Ground Clearance (mm) | 190 |
| Wheelbase (mm) | 2280 |
| Turning Circle (m) | 10000 |
| Unladen Weight (kg) | 1278 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 1725 |
| Track Front (mm) | 1505 |
| Track Rear (mm) | 1495 |
| Towing Capacity Brake (kg) | 1500 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Japan |
|---|---|
| Number of Doors | 3 |
| Seats | 4 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2004-11-15 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
