Overview

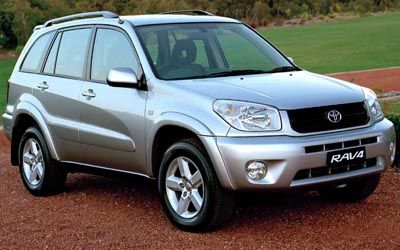

The 2004 Toyota RAV4 Cruiser is a four-wheel drive, 5-door SUV that was released to the Australian market on 2nd September 2003. The Toyota RAV4 is regarded as a small SUV built in Japan and when it was new had prices starting at $38,490.
This Toyota RAV4 is powered by a 2.4L 4-cylinder engine that has 120 kW of power (at 5700 rpm) and 224 Nm of torque (at 4000 rpm) via a Four-speed Automatic transmission. It has a 57L fuel tank
The Toyota RAV4 measures 1705mm (67.1 inches) in height, 4255mm (167.5 inches) in length, 1785mm (70.3 inches) in width with a 2490mm (98.0 inches) wheelbase that brings about a total of 1422kg (3135.0 lbs) of unladen weight. The RAV4 Cruiser comes standard with 235/60 R16 H front tyres and 235/60 R16 H rear tyres. It has a 36 month, 100,000 km warranty.
The 2004 Toyota RAV4 Cruiser has a 180mm ground clearance with a 1500kg braked and 750kg unbraked towing capacity.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | MULTI-POINT INJECTION |
|---|---|
| Size (cc) | 2362 |
| Size (L) | 2.4L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 120kW |
| Power RPM | 5700 |
| Torque | 224Nm |
| Torque RPM | 4000 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 4 SP AUTOMATIC |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Strut |
| Suspension Rear | Trailing Arm |
| Steering Mechanism | - |
| Drive | 4x4 |
| Fuel Combined (L/100km) | - |
|---|---|
| Fuel Urban (L/100km) | 9.7 |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 57 |
| Fuel Type | Unleaded |
| e10 Compatible | - |
| CO2 Combined | - |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 235/60 R16 H |
| Tyre Rear | 235/60 R16 H |
| Front Rim Size | 7x16 |
| Rear Rim Size | 7x16 |
| Vehicle Height (mm) | 1705 |
|---|---|
| Vehicle Length (mm) | 4255 |
| Vehicle Width (mm) | 1785 |
| Ground Clearance (mm) | 180 |
| Wheelbase (mm) | 2490 |
| Turning Circle (m) | 10600 |
| Unladen Weight (kg) | 1422 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 1875 |
| Track Front (mm) | 1525 |
| Track Rear (mm) | 1520 |
| Towing Capacity Brake (kg) | 1500 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Japan |
|---|---|
| Number of Doors | 5 |
| Seats | 5 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2004-05-07 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
