Overview

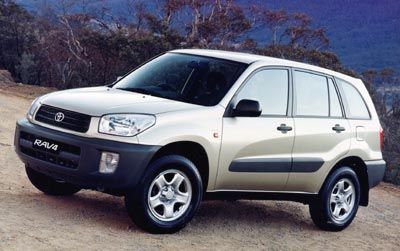

The 2002 Toyota RAV4 Edge is a four-wheel drive, 5-door SUV that was released to the Australian market on 2nd January 2002. The Toyota RAV4 is regarded as a small SUV built in Japan and when it was new had prices starting at $32,100.
This Toyota RAV4 is powered by a 2.0L 4-cylinder engine that has 110 kW of power (at 6000 rpm) and 192 Nm of torque (at 4000 rpm) via a Four-speed Automatic transmission. It has a 57L fuel tank
The Toyota RAV4 measures 1680mm (66.1 inches) in height, 4195mm (165.2 inches) in length, 1735mm (68.3 inches) in width with a 2490mm (98.0 inches) wheelbase that brings about a total of 1328kg (2927.7 lbs) of unladen weight. The RAV4 Edge comes standard with 215/70 R16 H front tyres and 215/70 R16 H rear tyres. It has a 36 month, 100,000 km warranty.
The 2002 Toyota RAV4 Edge has a 190mm ground clearance with a 1500kg braked and 640kg unbraked towing capacity.
Comparative Rating
Quickly see how this car stacks up against its competition. Select any benchmark to see more details.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | MULTI-POINT INJECTION |
|---|---|
| Size (cc) | 1998 |
| Size (L) | 2.0L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 110kW |
| Power RPM | 6000 |
| Torque | 192Nm |
| Torque RPM | 4000 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 4 SP AUTOMATIC |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Strut |
| Suspension Rear | Trailing Arm |
| Steering Mechanism | - |
| Drive | 4x4 |
| Fuel Combined (L/100km) | - |
|---|---|
| Fuel Urban (L/100km) | 9.5 |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 57 |
| Fuel Type | Unleaded |
| e10 Compatible | - |
| CO2 Combined | - |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 215/70 R16 H |
| Tyre Rear | 215/70 R16 H |
| Front Rim Size | 6.5x16 |
| Rear Rim Size | 6.5x16 |
| Vehicle Height (mm) | 1680 |
|---|---|
| Vehicle Length (mm) | 4195 |
| Vehicle Width (mm) | 1735 |
| Ground Clearance (mm) | 190 |
| Wheelbase (mm) | 2490 |
| Turning Circle (m) | 10600 |
| Unladen Weight (kg) | 1328 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 1690 |
| Track Front (mm) | 1505 |
| Track Rear (mm) | 1495 |
| Towing Capacity Brake (kg) | 1500 |
| Towing Capacity Unbraked (kg) | 640 |
| Country Of Origin | Japan |
|---|---|
| Number of Doors | 5 |
| Seats | 5 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2002-04-30 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
