Overview

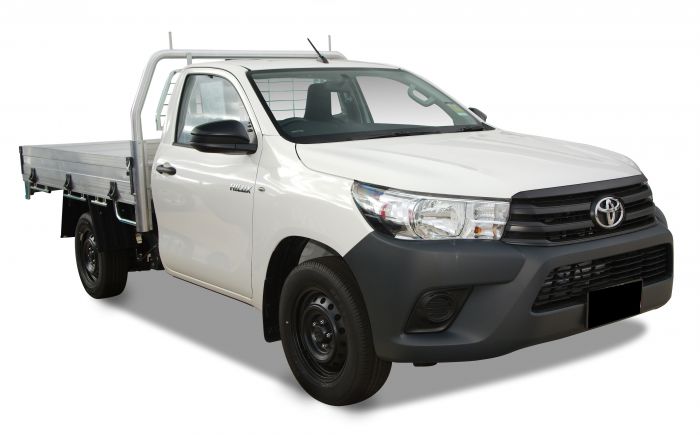

The 2024 Toyota HiLux SR is a four-wheel drive Single Cab Chassis that was released to the Australian market on 51st February 2024 classified as a GUN126R. The Toyota HiLux is regarded as a single cab chassis built in Thailand with prices starting at $44,035 before on-road costs.
The Toyota HiLux is a four-wheel drive 2 door with 2 seats, powered by a 2.8L 4 engine that has 150 kW of power (at 3400 rpm) and 420 Nm of torque (at 1400 rpm) via a Six-speed Manual. Toyota claims the HiLux SR uses 7.8L/100km of diesel in the combined city and highway cycle while putting out 204g of CO2. It has a 80L fuel tank, meaning it should be able to travel 1026km per full tank.
The Toyota HiLux measures 1855mm (73.0 inches) in height, 5320mm (209.4 inches) in length, 1800mm (70.9 inches) in width with a 3085mm (121.5 inches) wheelbase that brings about a total of 1766kg (3893.4 lbs) of unladen weight. The HiLux SR comes standard with 225/70 R 108 front tyres and 225/70 R 108 rear tyres. It requires a service every 6 months or 10000,000 km, whichever comes first. It has a 60 month, unlimited kmkm warranty.
The 2024 Toyota HiLux SR has a 216mm ground clearance with a 3500kg braked and 750kg unbraked towing capacity.
The Toyota HiLux has received a 5 star rating from ANCAP.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL COMMON RAIL |
|---|---|
| Size (cc) | 2755 |
| Size (L) | 2.8L |
| Cylinders | 4 |
| Camshaft | DUAL OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 150kW |
| Power RPM | 3400 |
| Torque | 420Nm |
| Torque RPM | 1400 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 6 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | wishbone |
| Suspension Rear | beam |
| Steering Mechanism | POWER STEERING |
| Drive | 4x4 |
| Fuel Combined (L/100km) | 7.8 |
|---|---|
| Fuel Urban (L/100km) | 8.6 |
| Fuel Extra Urban (L/100km) | 7.3 |
| Tank Size (L) | 80 |
| Fuel Type | diesel |
| e10 Compatible | - |
| CO2 Combined | 204 |
| CO2 Urban | 227 |
| CO2 Extra Urban | 191 |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DRUM |
| Tyre Front | 225/70 R 108 |
| Tyre Rear | 225/70 R 108 |
| Front Rim Size | 6x17 |
| Rear Rim Size | 6x17 |
| Vehicle Height (mm) | 1855 |
|---|---|
| Vehicle Length (mm) | 5320 |
| Vehicle Width (mm) | 1800 |
| Ground Clearance (mm) | 216 |
| Wheelbase (mm) | 3085 |
| Turning Circle (m) | 12600 |
| Unladen Weight (kg) | 1766 |
| Gross Combined Weight (kg) | 5850 |
| Gross Vehicle Weight (kg) | 3050 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 3500 |
| Towing Capacity Unbraked (kg) | 750 |
| Compliance Plate Location | - |
|---|---|
| Country Of Origin | Thailand |
| Number of Doors | 2 |
| Seats | 2 |
| Service Interval KMs | 10000 |
| Service Interval Months | 6 |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | - |
| Warranty Months | 60 |
| Discontinued Date | - |
| ANCAP Rating | 5 |
|---|---|
| Euro Air Pollution Standard | EU5 |
