Overview

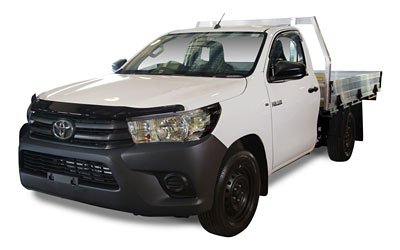

The 2022 Toyota HiLux WORKMATE is a rear Single Cab Chassis that was released to the Australian market on 224th August 2021 classified as a TGN121R. The Toyota HiLux is regarded as a single cab chassis built in Thailand with prices from a dealer as a used car starting at $24,225.
The Toyota HiLux is a rear 2 door with 2 seats, powered by a 2.7L 4 engine that has 122 kW of power (at 5200 rpm) and 245 Nm of torque (at 4000 rpm) via a Five-speed Manual. Toyota claims the HiLux WORKMATE uses 11.1L/100km of unleaded in the combined city and highway cycle while putting out 259g of CO2. It has a 80L fuel tank, meaning it should be able to travel 721km per full tank.
The Toyota HiLux measures 1690mm (66.5 inches) in height, 5265mm (207.3 inches) in length, 1800mm (70.9 inches) in width with a 3085mm (121.5 inches) wheelbase that brings about a total of 1423kg (3137.2 lbs) of unladen weight. The HiLux WORKMATE comes standard with 215/65 R 106 front tyres and 215/65 R 106 rear tyres. It requires a service every 6 months or 10000,000 km, whichever comes first. It has a 60 month, unlimited kmkm warranty.
The 2022 Toyota HiLux WORKMATE has a 174mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity.
The Toyota HiLux has received a 5 star rating from ANCAP.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | MULTI-POINT INJECTION |
|---|---|
| Size (cc) | 2694 |
| Size (L) | 2.7L |
| Cylinders | 4 |
| Camshaft | DUAL OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 122kW |
| Power RPM | 5200 |
| Torque | 245Nm |
| Torque RPM | 4000 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 5 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | wishbone |
| Suspension Rear | beam |
| Steering Mechanism | POWER STEERING |
| Drive | rear |
| Fuel Combined (L/100km) | 11.1 |
|---|---|
| Fuel Urban (L/100km) | 14 |
| Fuel Extra Urban (L/100km) | 9.4 |
| Tank Size (L) | 80 |
| Fuel Type | unleaded |
| e10 Compatible | - |
| CO2 Combined | 259 |
| CO2 Urban | 326 |
| CO2 Extra Urban | 219 |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DRUM |
| Tyre Front | 215/65 R 106 |
| Tyre Rear | 215/65 R 106 |
| Front Rim Size | 6x16 |
| Rear Rim Size | 6x16 |
| Vehicle Height (mm) | 1690 |
|---|---|
| Vehicle Length (mm) | 5265 |
| Vehicle Width (mm) | 1800 |
| Ground Clearance (mm) | 174 |
| Wheelbase (mm) | 3085 |
| Turning Circle (m) | 11800 |
| Unladen Weight (kg) | 1423 |
| Gross Combined Weight (kg) | 5200 |
| Gross Vehicle Weight (kg) | 2700 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 2500 |
| Towing Capacity Unbraked (kg) | 750 |
| Compliance Plate Location | - |
|---|---|
| Country Of Origin | Thailand |
| Number of Doors | 2 |
| Seats | 2 |
| Service Interval KMs | 10000 |
| Service Interval Months | 6 |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | - |
| Warranty Months | 60 |
| Discontinued Date | 2022-03-09 |
| ANCAP Rating | 5 |
|---|---|
| Euro Air Pollution Standard | EU5 |
