Overview

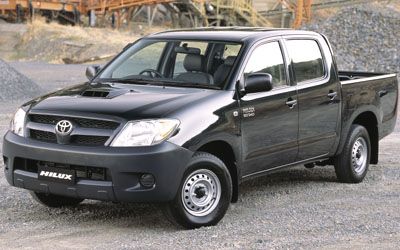

The 2006 Toyota HiLux SR is a rear-wheel drive, Double Cab Utility that was released to the Australian market on 2nd September 2006. The Toyota HiLux is regarded as a Pick-up or Cab Chassis 4x2 built in Thailand and when it was new had prices starting at $32,290.
This Toyota HiLux is powered by a 4.0L 6-cylinder engine that has 175 kW of power (at 5200 rpm) and 343 Nm of torque (at 4800 rpm) via a Five-speed Manual transmission. Toyota claims the HiLux SR uses 12.6L/100km of Unleaded in the combined city and highway cycle while putting out 299g of CO2. It has a 76L fuel tank, meaning it should be able to travel 603km per full tank
The Toyota HiLux measures 1695mm (66.7 inches) in height, 5130mm (202.0 inches) in length, 1760mm (69.3 inches) in width with a 3085mm (121.5 inches) wheelbase that brings about a total of 1565kg (3450.2 lbs) of unladen weight. The HiLux SR comes standard with 205/70 R15 ? front tyres and 205/70 R15 ? rear tyres. It has a 36 month, 100,000 km warranty.
The 2006 Toyota HiLux SR has a 177mm ground clearance with a 2250kg braked and 750kg unbraked towing capacity.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | MULTI-POINT INJECTION |
|---|---|
| Size (cc) | 3956 |
| Size (L) | 4.0L |
| Cylinders | 6 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 24 |
| Power | 175kW |
| Power RPM | 5200 |
| Torque | 343Nm |
| Torque RPM | 4800 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 5 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Wishbone |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | rear |
| Fuel Combined (L/100km) | 12.6 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 76 |
| Fuel Type | Unleaded |
| e10 Compatible | - |
| CO2 Combined | 299 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DRUM |
| Tyre Front | 205/70 R15 ? |
| Tyre Rear | 205/70 R15 ? |
| Front Rim Size | 6x15 |
| Rear Rim Size | 6x15 |
| Vehicle Height (mm) | 1695 |
|---|---|
| Vehicle Length (mm) | 5130 |
| Vehicle Width (mm) | 1760 |
| Ground Clearance (mm) | 177 |
| Wheelbase (mm) | 3085 |
| Turning Circle (m) | 11800 |
| Unladen Weight (kg) | 1565 |
| Gross Combined Weight (kg) | 4600 |
| Gross Vehicle Weight (kg) | 2710 |
| Track Front (mm) | 1510 |
| Track Rear (mm) | 1510 |
| Towing Capacity Brake (kg) | 2250 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Thailand |
|---|---|
| Number of Doors | 4 |
| Seats | 5 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2006-12-31 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
