Overview

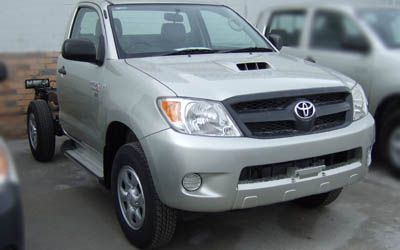

The 2006 Toyota HiLux SR is a four-wheel drive, Single Cab Chassis that was released to the Australian market on 2nd September 2006. The Toyota HiLux is regarded as a Pick-up or Cab Chassis 4x4 built in Thailand and when it was new had prices starting at $34,890.
This Toyota HiLux is powered by a 3.0L 4-cylinder engine that has 120 kW of power (at 3400 rpm) and 343 Nm of torque (at 1400 rpm) via a Five-speed Manual transmission. It has a 76L fuel tank
It has a 36 month, 100,000 km warranty.
The 2006 Toyota HiLux SR has a 217mm ground clearance with a 2250kg braked and 750kg unbraked towing capacity.
Best For
Work
Family
Long distance
Awards
'23
Ute of the Year
Best Ute Dyno
Warranty
3Years
or
100,000km
single cab chassis
Diesel
3.0L
4x4
5 MT
3
2
Dimensions
1795mm
1760mm
4975mm
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL COMMON RAIL |
|---|---|
| Size (cc) | 2982 |
| Size (L) | 3.0L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 120kW |
| Power RPM | 3400 |
| Torque | 343Nm |
| Torque RPM | 1400 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 5 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Wishbone |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | 4x4 |
| Fuel Combined (L/100km) | - |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 76 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | - |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DRUM |
| Tyre Front | - |
| Tyre Rear | - |
| Front Rim Size | 6x16 |
| Rear Rim Size | 6x16 |
| Vehicle Height (mm) | 1795 |
|---|---|
| Vehicle Length (mm) | 4975 |
| Vehicle Width (mm) | 1760 |
| Ground Clearance (mm) | 217 |
| Wheelbase (mm) | 3085 |
| Turning Circle (m) | 12200 |
| Unladen Weight (kg) | 1725 |
| Gross Combined Weight (kg) | 4600 |
| Gross Vehicle Weight (kg) | 2810 |
| Track Front (mm) | 1510 |
| Track Rear (mm) | 1510 |
| Towing Capacity Brake (kg) | 2250 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Thailand |
|---|---|
| Number of Doors | 2 |
| Seats | 3 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2007-07-01 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
