Overview

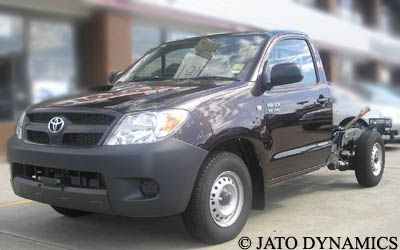

The 2006 Toyota HiLux SR is a rear-wheel drive, Single Cab Chassis that was released to the Australian market on 6th July 2006. The Toyota HiLux is regarded as a Pick-up or Cab Chassis 4x2 built in Thailand and when it was new had prices starting at $29,290.
This Toyota HiLux is powered by a 3.0L 4-cylinder engine that has 120 kW of power (at 3400 rpm) and 343 Nm of torque (at 1400 rpm) via a Five-speed Manual transmission. Toyota claims the HiLux SR uses 8.6L/100km of Diesel in the combined city and highway cycle while putting out 228g of CO2. It has a 76L fuel tank, meaning it should be able to travel 884km per full tank
It has a 36 month, 100,000 km warranty.
The 2006 Toyota HiLux SR has a 177mm ground clearance with a 2250kg braked and 750kg unbraked towing capacity.
The Toyota HiLux has received a 4 star rating from ANCAP.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL COMMON RAIL |
|---|---|
| Size (cc) | 2982 |
| Size (L) | 3.0L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 120kW |
| Power RPM | 3400 |
| Torque | 343Nm |
| Torque RPM | 1400 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 5 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Wishbone |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | rear |
| Fuel Combined (L/100km) | 8.6 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 76 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | 228 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DRUM |
| Tyre Front | - |
| Tyre Rear | - |
| Front Rim Size | 5.5x14 |
| Rear Rim Size | 5.5x14 |
| Vehicle Height (mm) | 1680 |
|---|---|
| Vehicle Length (mm) | 4975 |
| Vehicle Width (mm) | 1760 |
| Ground Clearance (mm) | 177 |
| Wheelbase (mm) | 3085 |
| Turning Circle (m) | 11800 |
| Unladen Weight (kg) | 1560 |
| Gross Combined Weight (kg) | 4600 |
| Gross Vehicle Weight (kg) | 2875 |
| Track Front (mm) | 1510 |
| Track Rear (mm) | 1510 |
| Towing Capacity Brake (kg) | 2250 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Thailand |
|---|---|
| Number of Doors | 2 |
| Seats | 3 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2006-09-11 |
| ANCAP Rating | 4 |
|---|---|
| Euro Air Pollution Standard | - |
