Overview

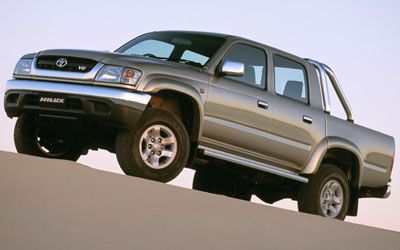

The 2005 Toyota HiLux SR5 is a four-wheel drive, Double Cab Utility that was released to the Australian market on 3rd October 2002. The Toyota HiLux is regarded as a Pick-up or Cab Chassis 4x4 built in Japan and when it was new had prices starting at $42,290.
This Toyota HiLux is powered by a 3.4L 6-cylinder engine that has 124 kW of power (at 4600 rpm) and 291 Nm of torque (at 3600 rpm) via a Five-speed Manual transmission. It has a 66L fuel tank
The Toyota HiLux measures 1810mm (71.3 inches) in height, 4915mm (193.5 inches) in length, 1790mm (70.5 inches) in width with a 2860mm (112.6 inches) wheelbase that brings about a total of 1696kg (3739.0 lbs) of unladen weight. The HiLux SR5 comes standard with 255/70 R15 front tyres and 255/70 R15 rear tyres. It has a 36 month, 100,000 km warranty.
The 2005 Toyota HiLux SR5 has a 225mm ground clearance with a 1800kg braked and 700kg unbraked towing capacity.
Dimensions
The dimensions shown above are for the base model.
Specifications
Type | MULTI-POINT INJECTION |
---|---|
Size (cc) | 3378 |
Size (L) | 3.4L |
Cylinders | 6 |
Camshaft | Dual Overhead Cam |
Valves/Ports per Cylinder | 24 |
Power | 124kW |
Power RPM | 4600 |
Torque | 291Nm |
Torque RPM | 3600 |
Bore Stroke | - |
Compression Ratio | - |
Transmission | 5 SP MANUAL |
---|---|
Final Gear Ratio | - |
Suspension Front | Wishbone |
Suspension Rear | Beam |
Steering Mechanism | - |
Drive | 4x4 |
Fuel Combined (L/100km) | - |
---|---|
Fuel Urban (L/100km) | - |
Fuel Extra Urban (L/100km) | - |
Tank Size (L) | 66 |
Fuel Type | Unleaded |
e10 Compatible | - |
CO2 Combined | - |
CO2 Urban | - |
CO2 Extra Urban | - |
Brake Front | DISC - VENTILATED |
---|---|
Brake Rear | DRUM |
Tyre Front | 255/70 R15 |
Tyre Rear | 255/70 R15 |
Front Rim Size | 7x15 |
Rear Rim Size | 7x15 |
Vehicle Height (mm) | 1810 |
---|---|
Vehicle Length (mm) | 4915 |
Vehicle Width (mm) | 1790 |
Ground Clearance (mm) | 225 |
Wheelbase (mm) | 2860 |
Turning Circle (m) | 12200 |
Unladen Weight (kg) | 1696 |
Gross Combined Weight (kg) | - |
Gross Vehicle Weight (kg) | 2730 |
Track Front (mm) | 1485 |
Track Rear (mm) | 1470 |
Towing Capacity Brake (kg) | 1800 |
Towing Capacity Unbraked (kg) | 700 |
Country Of Origin | Japan |
---|---|
Number of Doors | 4 |
Seats | 5 |
Service Interval KMs | - |
Service Interval Months | - |
VIN Location | - |
VIN Number | - |
Warranty KMs | 100 |
Warranty Months | 36 |
Discontinued Date | 2005-03-20 |
ANCAP Rating | - |
---|---|
Euro Air Pollution Standard | - |
