Overview

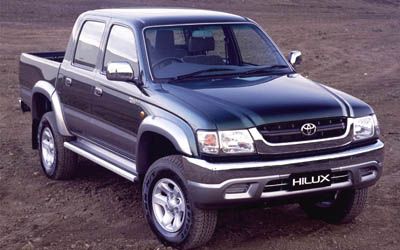

The 2002 Toyota HiLux SR5 is a four-wheel drive, Double Cab Utility that was released to the Australian market on 1st November 2001. The Toyota HiLux is regarded as a Pick-up or Cab Chassis 4x4 built in Japan and when it was new had prices starting at $40,545.
This Toyota HiLux is powered by a 2.7L 4-cylinder engine that has 108 kW of power (at 4800 rpm) and 235 Nm of torque (at 4000 rpm) via a Five-speed Manual transmission. It has a 66L fuel tank
The Toyota HiLux measures 1805mm (71.1 inches) in height, 4855mm (191.1 inches) in length, 1700mm (66.9 inches) in width with a 2860mm (112.6 inches) wheelbase that brings about a total of 1638kg (3611.2 lbs) of unladen weight. The HiLux SR5 comes standard with 255/70 R15 front tyres and 255/70 R15 rear tyres. It has a 36 month, 100,000 km warranty.
The 2002 Toyota HiLux SR5 has a 225mm ground clearance with a 1800kg braked and 700kg unbraked towing capacity.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | MULTI-POINT INJECTION |
|---|---|
| Size (cc) | 2694 |
| Size (L) | 2.7L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 108kW |
| Power RPM | 4800 |
| Torque | 235Nm |
| Torque RPM | 4000 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 5 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Wishbone |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | 4x4 |
| Fuel Combined (L/100km) | - |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 66 |
| Fuel Type | Unleaded |
| e10 Compatible | - |
| CO2 Combined | - |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DRUM |
| Tyre Front | 255/70 R15 |
| Tyre Rear | 255/70 R15 |
| Front Rim Size | 7x15 |
| Rear Rim Size | 7x15 |
| Vehicle Height (mm) | 1805 |
|---|---|
| Vehicle Length (mm) | 4855 |
| Vehicle Width (mm) | 1700 |
| Ground Clearance (mm) | 225 |
| Wheelbase (mm) | 2860 |
| Turning Circle (m) | 12200 |
| Unladen Weight (kg) | 1638 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 2750 |
| Track Front (mm) | 1485 |
| Track Rear (mm) | 1470 |
| Towing Capacity Brake (kg) | 1800 |
| Towing Capacity Unbraked (kg) | 700 |
| Country Of Origin | Japan |
|---|---|
| Number of Doors | 4 |
| Seats | 5 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2001-12-31 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
