Overview

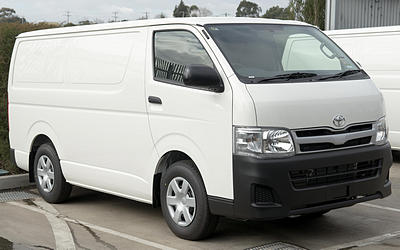

The 2012 Toyota HiAce Base is a rear 4d Panel Van that was released to the Australian market on 173rd June 2012 classified as a TRH201R. The Toyota HiAce is regarded as a 4d panel van built in Japan with prices from a dealer as a used car starting at $36,390.
The Toyota HiAce is a rear 4 door with 3 seats, powered by a 2.7L 4 engine that has 111 kW of power (at 4800 rpm) and 241 Nm of torque (at 3800 rpm) via a Four-speed Automatic. Toyota claims the HiAce Base uses 11.6L/100km of unleaded in the combined city and highway cycle while putting out 274g of CO2. It has a 70L fuel tank, meaning it should be able to travel 603km per full tank.
The Toyota HiAce measures 1980mm (78.0 inches) in height, 4695mm (184.8 inches) in length, 1695mm (66.7 inches) in width with a 2570mm (101.2 inches) wheelbase that brings about a total of 1620kg (3571.5 lbs) of unladen weight. The HiAce Base comes standard with 195/80 R 106 front tyres and 195/80 R 106 rear tyres. It has a 36 month, 100,000kmkm warranty.
The 2012 Toyota HiAce Base has a 160mm ground clearance with a 1400kg braked and 400kg unbraked towing capacity.
The Toyota HiAce has received a 4 star rating from ANCAP.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | MULTI-POINT INJECTION |
|---|---|
| Size (cc) | 2694 |
| Size (L) | 2.7L |
| Cylinders | 4 |
| Camshaft | DUAL OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 111kW |
| Power RPM | 4800 |
| Torque | 241Nm |
| Torque RPM | 3800 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 4 SP AUTOMATIC |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | wishbone |
| Suspension Rear | beam |
| Steering Mechanism | HYDRAULIC POWER STEERING |
| Drive | rear |
| Fuel Combined (L/100km) | 11.6 |
|---|---|
| Fuel Urban (L/100km) | 0 |
| Fuel Extra Urban (L/100km) | 0 |
| Tank Size (L) | 70 |
| Fuel Type | unleaded |
| e10 Compatible | - |
| CO2 Combined | 274 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DRUM |
| Tyre Front | 195/80 R 106 |
| Tyre Rear | 195/80 R 106 |
| Front Rim Size | 6x15 |
| Rear Rim Size | 6x15 |
| Vehicle Height (mm) | 1980 |
|---|---|
| Vehicle Length (mm) | 4695 |
| Vehicle Width (mm) | 1695 |
| Ground Clearance (mm) | 160 |
| Wheelbase (mm) | 2570 |
| Turning Circle (m) | 10000 |
| Unladen Weight (kg) | 1620 |
| Gross Combined Weight (kg) | 4200 |
| Gross Vehicle Weight (kg) | 2800 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 1400 |
| Towing Capacity Unbraked (kg) | 400 |
| Compliance Plate Location | - |
|---|---|
| Country Of Origin | Japan |
| Number of Doors | 4 |
| Seats | 3 |
| Service Interval KMs | 10000 |
| Service Interval Months | 0 |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2012-07-03 |
| ANCAP Rating | 4 |
|---|---|
| Euro Air Pollution Standard | EU4 |
