Overview

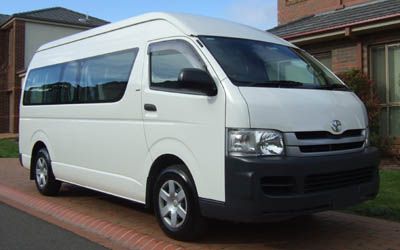

The 2010 Toyota HiAce Commuter is a rear-wheel drive, Bus that was released to the Australian market on 1st June 2009 classified as a KDH222R. The Toyota HiAce is regarded as a people mover built in Japan and when it was new had prices starting at $55,390.
This Toyota HiAce is powered by a 3.0L 4-cylinder engine that has 80 kW of power (at 3000 rpm) and 283 Nm of torque (at 1200 rpm) via a Five-speed Manual transmission. Toyota claims the HiAce Commuter uses 9.3L/100km of Diesel in the combined city and highway cycle while putting out 243g of CO2. It has a 70L fuel tank, meaning it should be able to travel 753km per full tank
The Toyota HiAce measures 2285mm (90.0 inches) in height, 5380mm (211.8 inches) in length, 1880mm (74.0 inches) in width with a 3110mm (122.4 inches) wheelbase that brings about a total of 2160kg (4762.0 lbs) of unladen weight. The HiAce Commuter comes standard with 195/80 R15 106 front tyres and 195/80 R15 106 rear tyres. It has a 36 month, 100,000 km warranty.
The 2010 Toyota HiAce Commuter has a 185mm ground clearance with a 1400kg braked and 400kg unbraked towing capacity.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL DIRECT INJECTION |
|---|---|
| Size (cc) | 2982 |
| Size (L) | 3.0L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 80kW |
| Power RPM | 3000 |
| Torque | 283Nm |
| Torque RPM | 1200 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 5 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Wishbone |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | rear |
| Fuel Combined (L/100km) | 9.3 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 70 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | 243 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DRUM |
| Tyre Front | 195/80 R15 106 |
| Tyre Rear | 195/80 R15 106 |
| Front Rim Size | 6x15 |
| Rear Rim Size | 6x15 |
| Vehicle Height (mm) | 2285 |
|---|---|
| Vehicle Length (mm) | 5380 |
| Vehicle Width (mm) | 1880 |
| Ground Clearance (mm) | 185 |
| Wheelbase (mm) | 3110 |
| Turning Circle (m) | 12400 |
| Unladen Weight (kg) | 2160 |
| Gross Combined Weight (kg) | 4200 |
| Gross Vehicle Weight (kg) | 3200 |
| Track Front (mm) | 1655 |
| Track Rear (mm) | 1650 |
| Towing Capacity Brake (kg) | 1400 |
| Towing Capacity Unbraked (kg) | 400 |
| Country Of Origin | Japan |
|---|---|
| Number of Doors | 4 |
| Seats | 14 |
| Service Interval KMs | 10000 |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2010-10-07 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | EU4 |
