Overview

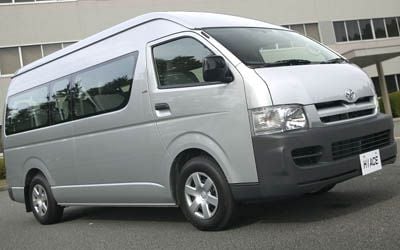

The 2006 Toyota HiAce Commuter is a rear-wheel drive, Single Cab Bus that was released to the Australian market on 2nd March 2005 classified as a 550N. The Toyota HiAce is regarded as a people mover built in Japan and when it was new had prices starting at $52,500.
This Toyota HiAce is powered by a 2.5L 4-cylinder engine that has 80 kW of power (at 3600 rpm) and 260 Nm of torque (at 1600 rpm) via a Four-speed Automatic transmission. Toyota claims the HiAce Commuter uses 9.6L/100km of Diesel in the combined city and highway cycle while putting out 254g of CO2. It has a 70L fuel tank, meaning it should be able to travel 729km per full tank
It has a 36 month, 100,000 km warranty.
The 2006 Toyota HiAce Commuter has a 155mm ground clearance with a 1000kg braked and 400kg unbraked towing capacity.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL INDIRECT INJECTION |
|---|---|
| Size (cc) | 2494 |
| Size (L) | 2.5L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 80kW |
| Power RPM | 3600 |
| Torque | 260Nm |
| Torque RPM | 1600 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 4 SP AUTOMATIC |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Wishbone |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | rear |
| Fuel Combined (L/100km) | 9.6 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 70 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | 254 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DRUM |
| Tyre Front | - |
| Tyre Rear | - |
| Front Rim Size | 6x15 |
| Rear Rim Size | 6x15 |
| Vehicle Height (mm) | 2285 |
|---|---|
| Vehicle Length (mm) | 5380 |
| Vehicle Width (mm) | 1880 |
| Ground Clearance (mm) | 155 |
| Wheelbase (mm) | 3110 |
| Turning Circle (m) | 12400 |
| Unladen Weight (kg) | 2094 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 3200 |
| Track Front (mm) | 1655 |
| Track Rear (mm) | 1650 |
| Towing Capacity Brake (kg) | 1000 |
| Towing Capacity Unbraked (kg) | 400 |
| Country Of Origin | Japan |
|---|---|
| Number of Doors | 4 |
| Seats | 14 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2006-06-30 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
