Overview

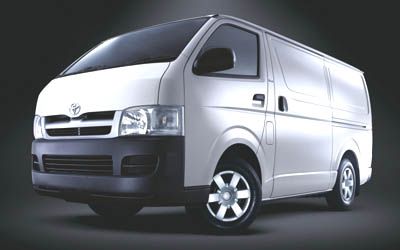

The 2006 Toyota HiAce Base is a rear-wheel drive, 4-door Panel Van that was released to the Australian market on 5th October 2006 classified as a 550N. The Toyota HiAce is regarded as a Van under 3.5t built in Japan and when it was new had prices starting at $37,270.
This Toyota HiAce is powered by a 3.0L 4-cylinder engine that has 80 kW of power (at 3000 rpm) and 283 Nm of torque (at 1200 rpm) via a Four-speed Automatic transmission. Toyota claims the HiAce Base uses 8.8L/100km of Diesel in the combined city and highway cycle while putting out 230g of CO2. It has a 70L fuel tank, meaning it should be able to travel 795km per full tank
It has a 36 month, 100,000 km warranty.
The 2006 Toyota HiAce Base has a 160mm ground clearance with a 1000kg braked and 400kg unbraked towing capacity.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL INDIRECT INJECTION |
|---|---|
| Size (cc) | 2982 |
| Size (L) | 3.0L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 80kW |
| Power RPM | 3000 |
| Torque | 283Nm |
| Torque RPM | 1200 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 4 SP AUTOMATIC |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Wishbone |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | rear |
| Fuel Combined (L/100km) | 8.8 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 70 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | 230 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DRUM |
| Tyre Front | - |
| Tyre Rear | - |
| Front Rim Size | 6x15 |
| Rear Rim Size | 6x15 |
| Vehicle Height (mm) | 1980 |
|---|---|
| Vehicle Length (mm) | 4695 |
| Vehicle Width (mm) | 1695 |
| Ground Clearance (mm) | 160 |
| Wheelbase (mm) | 2570 |
| Turning Circle (m) | 10000 |
| Unladen Weight (kg) | 1771 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 2800 |
| Track Front (mm) | 1470 |
| Track Rear (mm) | 1465 |
| Towing Capacity Brake (kg) | 1000 |
| Towing Capacity Unbraked (kg) | 400 |
| Country Of Origin | Japan |
|---|---|
| Number of Doors | 4 |
| Seats | 3 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2007-10-16 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
