Overview

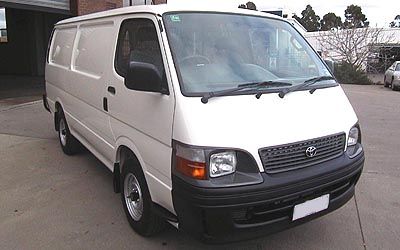

The 2005 Toyota HiAce LWB is a rear-wheel drive, 4-door Panel Van that was released to the Australian market on 2nd January 2002. The Toyota HiAce is regarded as a Van under 3.5t built in Japan and when it was new had prices starting at $30,880.
This Toyota HiAce is powered by a 2.4L 4-cylinder engine that has 85 kW of power (at 4800 rpm) and 200 Nm of torque (at 2600 rpm) via a Five-speed Manual transmission. It has a 70L fuel tank
The Toyota HiAce measures 1930mm (76.0 inches) in height, 4900mm (192.9 inches) in length, 1690mm (66.5 inches) in width with a 2590mm (102.0 inches) wheelbase that brings about a total of 1495kg (3295.9 lbs) of unladen weight. The HiAce LWB comes standard with 195/70 R15 front tyres and 195/70 R15 rear tyres. It has a 36 month, 100,000 km warranty.
The 2005 Toyota HiAce LWB has a 190mm ground clearance with a 1400kg braked and 400kg unbraked towing capacity.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | MULTI-POINT INJECTION |
|---|---|
| Size (cc) | 2438 |
| Size (L) | 2.4L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 8 |
| Power | 85kW |
| Power RPM | 4800 |
| Torque | 200Nm |
| Torque RPM | 2600 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 5 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Wishbone |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | rear |
| Fuel Combined (L/100km) | - |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 70 |
| Fuel Type | Unleaded |
| e10 Compatible | - |
| CO2 Combined | - |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DRUM |
| Tyre Front | 195/70 R15 |
| Tyre Rear | 195/70 R15 |
| Front Rim Size | 5.5x15 |
| Rear Rim Size | 5.5x15 |
| Vehicle Height (mm) | 1930 |
|---|---|
| Vehicle Length (mm) | 4900 |
| Vehicle Width (mm) | 1690 |
| Ground Clearance (mm) | 190 |
| Wheelbase (mm) | 2590 |
| Turning Circle (m) | - |
| Unladen Weight (kg) | 1495 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 2800 |
| Track Front (mm) | 1450 |
| Track Rear (mm) | 1430 |
| Towing Capacity Brake (kg) | 1400 |
| Towing Capacity Unbraked (kg) | 400 |
| Country Of Origin | Japan |
|---|---|
| Number of Doors | 4 |
| Seats | 3 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2005-03-14 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
