Overview

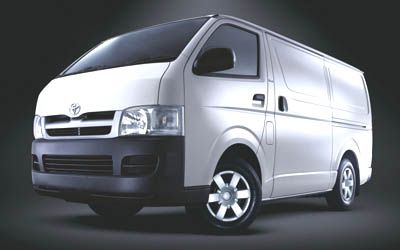

The 2005 Toyota HiAce Base is a rear-wheel drive, 4-door Panel Van that was released to the Australian market on 2nd March 2005 classified as a 550N. The Toyota HiAce is regarded as a Van under 3.5t built in Japan and when it was new had prices starting at $36,730.
This Toyota HiAce is powered by a 2.5L 4-cylinder engine that has 75 kW of power (at 3600 rpm) and 260 Nm of torque (at 1600 rpm) via a Four-speed Automatic transmission. Toyota claims the HiAce Base uses 8.4L/100km of Diesel in the combined city and highway cycle while putting out 222g of CO2. It has a 70L fuel tank, meaning it should be able to travel 833km per full tank
It has a 36 month, 100,000 km warranty.
The 2005 Toyota HiAce Base has a 160mm ground clearance with a 1000kg braked and 400kg unbraked towing capacity.
Comparative Rating
Quickly see how this car stacks up against its competition. Select any benchmark to see more details.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL INDIRECT INJECTION |
|---|---|
| Size (cc) | 2494 |
| Size (L) | 2.5L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 75kW |
| Power RPM | 3600 |
| Torque | 260Nm |
| Torque RPM | 1600 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 4 SP AUTOMATIC |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Wishbone |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | rear |
| Fuel Combined (L/100km) | 8.4 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 70 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | 222 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DRUM |
| Tyre Front | - |
| Tyre Rear | - |
| Front Rim Size | 6x15 |
| Rear Rim Size | 6x15 |
| Vehicle Height (mm) | 1980 |
|---|---|
| Vehicle Length (mm) | 4695 |
| Vehicle Width (mm) | 1695 |
| Ground Clearance (mm) | 160 |
| Wheelbase (mm) | 2570 |
| Turning Circle (m) | 10000 |
| Unladen Weight (kg) | 1771 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 2800 |
| Track Front (mm) | 1470 |
| Track Rear (mm) | 1465 |
| Towing Capacity Brake (kg) | 1000 |
| Towing Capacity Unbraked (kg) | 400 |
| Country Of Origin | Japan |
|---|---|
| Number of Doors | 4 |
| Seats | 3 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2006-06-30 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
