Overview

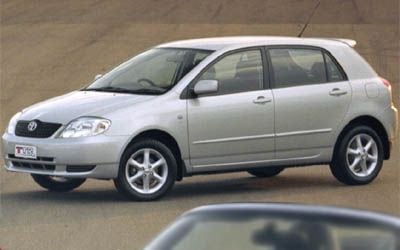

The 2004 Toyota Corolla TTR LE is a front-wheel drive, 5-door Hatchback that was released to the Australian market on 3rd March 2004. The Toyota Corolla is regarded as a small car built in Japan and when it was new had prices starting at $22,838.
This Toyota Corolla is powered by a 1.8L 4-cylinder engine that has 100 kW of power (at 6000 rpm) and 171 Nm of torque (at 4200 rpm) via a Four-speed Automatic transmission. Toyota claims the Corolla TTR LE uses 8.1L/100km of Unleaded in the combined city and highway cycle while putting out nullg of CO2. It has a 55L fuel tank, meaning it should be able to travel 679km per full tank
The Toyota Corolla measures 1470mm (57.9 inches) in height, 4175mm (164.4 inches) in length, 1695mm (66.7 inches) in width with a 2600mm (102.4 inches) wheelbase that brings about a total of 1103kg (2431.7 lbs) of unladen weight. The Corolla TTR LE comes standard with 195/60 R15 V front tyres and 195/60 R15 V rear tyres. It has a 36 month, 100,000 km warranty.
The 2004 Toyota Corolla TTR LE has a 107mm ground clearance with a 950kg braked and 500kg unbraked towing capacity.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | MULTI-POINT INJECTION |
|---|---|
| Size (cc) | 1794 |
| Size (L) | 1.8L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 100kW |
| Power RPM | 6000 |
| Torque | 171Nm |
| Torque RPM | 4200 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 4 SP AUTOMATIC |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Strut |
| Suspension Rear | Torsion Beam |
| Steering Mechanism | - |
| Drive | front |
| Fuel Combined (L/100km) | 8.1 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 55 |
| Fuel Type | Unleaded |
| e10 Compatible | - |
| CO2 Combined | - |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 195/60 R15 V |
| Tyre Rear | 195/60 R15 V |
| Front Rim Size | 6x15 |
| Rear Rim Size | 6x15 |
| Vehicle Height (mm) | 1470 |
|---|---|
| Vehicle Length (mm) | 4175 |
| Vehicle Width (mm) | 1695 |
| Ground Clearance (mm) | 107 |
| Wheelbase (mm) | 2600 |
| Turning Circle (m) | 10200 |
| Unladen Weight (kg) | 1103 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 1630 |
| Track Front (mm) | 1490 |
| Track Rear (mm) | 1470 |
| Towing Capacity Brake (kg) | 950 |
| Towing Capacity Unbraked (kg) | 500 |
| Country Of Origin | Japan |
|---|---|
| Number of Doors | 5 |
| Seats | 5 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2004-06-25 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
