Overview

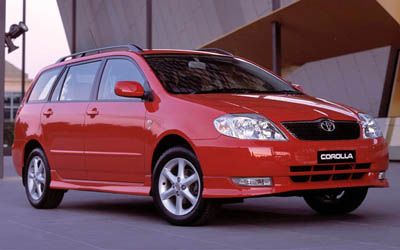

The 2002 Toyota Corolla Levin is a front-wheel drive, 5-door Station Wagon that was released to the Australian market on 3rd December 2001. The Toyota Corolla is regarded as a small car built in Japan and when it was new had prices starting at $30,890.
This Toyota Corolla is powered by a 1.8L 4-cylinder engine that has 100 kW of power (at 6000 rpm) and 171 Nm of torque (at 4200 rpm) via a Four-speed Automatic transmission. It has a 55L fuel tank
The Toyota Corolla measures 1520mm (59.8 inches) in height, 4385mm (172.6 inches) in length, 1695mm (66.7 inches) in width with a 2600mm (102.4 inches) wheelbase that brings about a total of 1199kg (2643.3 lbs) of unladen weight. The Corolla Levin comes standard with 195/60 R15 V front tyres and 195/60 R15 V rear tyres. It has a 36 month, 100,000 km warranty.
The 2002 Toyota Corolla Levin has a 106mm ground clearance with a 1300kg braked and 450kg unbraked towing capacity.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | MULTI-POINT INJECTION |
|---|---|
| Size (cc) | 1794 |
| Size (L) | 1.8L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 100kW |
| Power RPM | 6000 |
| Torque | 171Nm |
| Torque RPM | 4200 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 4 SP AUTOMATIC |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Strut |
| Suspension Rear | Torsion Beam |
| Steering Mechanism | - |
| Drive | front |
| Fuel Combined (L/100km) | - |
|---|---|
| Fuel Urban (L/100km) | 7.8 |
| Fuel Extra Urban (L/100km) | 5.8 |
| Tank Size (L) | 55 |
| Fuel Type | Unleaded |
| e10 Compatible | - |
| CO2 Combined | - |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 195/60 R15 V |
| Tyre Rear | 195/60 R15 V |
| Front Rim Size | 6x15 |
| Rear Rim Size | 6x15 |
| Vehicle Height (mm) | 1520 |
|---|---|
| Vehicle Length (mm) | 4385 |
| Vehicle Width (mm) | 1695 |
| Ground Clearance (mm) | 106 |
| Wheelbase (mm) | 2600 |
| Turning Circle (m) | 10200 |
| Unladen Weight (kg) | 1199 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 1630 |
| Track Front (mm) | 1480 |
| Track Rear (mm) | 1460 |
| Towing Capacity Brake (kg) | 1300 |
| Towing Capacity Unbraked (kg) | 450 |
| Country Of Origin | Japan |
|---|---|
| Number of Doors | 5 |
| Seats | 5 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2002-12-31 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
