Overview

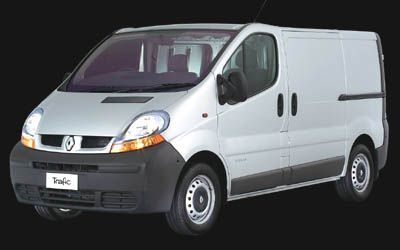

The 2007 Renault Trafic Integral is a front-wheel drive, 4-door Panel Van that was released to the Australian market on 5th April 2005 classified as a X83. The Renault Trafic is regarded as a Van under 3.5t built in Great Britain and when it was new had prices starting at $41,390.
This Renault Trafic is powered by a 1.9L 4-cylinder engine that has 74 kW of power (at 3500 rpm) and 240 Nm of torque (at 2000 rpm) via a Six-speed Manual transmission. It has a 90L fuel tank
The Renault Trafic measures 2492mm (98.1 inches) in height, 5182mm (204.0 inches) in length, 1904mm (75.0 inches) in width with a 3498mm (137.7 inches) wheelbase that brings about a total of 1881kg (4146.9 lbs) of unladen weight. The Trafic Integral comes standard with 205/65 R16 front tyres and 205/65 R16 rear tyres. It has a 36 month, 100,000 km warranty.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL COMMON RAIL |
|---|---|
| Size (cc) | 1870 |
| Size (L) | 1.9L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 8 |
| Power | 74kW |
| Power RPM | 3500 |
| Torque | 240Nm |
| Torque RPM | 2000 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 6 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Strut |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | front |
| Fuel Combined (L/100km) | - |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 90 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | - |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 205/65 R16 |
| Tyre Rear | 205/65 R16 |
| Front Rim Size | 6x16 |
| Rear Rim Size | 6x16 |
| Vehicle Height (mm) | 2492 |
|---|---|
| Vehicle Length (mm) | 5182 |
| Vehicle Width (mm) | 1904 |
| Ground Clearance (mm) | - |
| Wheelbase (mm) | 3498 |
| Turning Circle (m) | 13170 |
| Unladen Weight (kg) | 1881 |
| Gross Combined Weight (kg) | 5015 |
| Gross Vehicle Weight (kg) | 3015 |
| Track Front (mm) | 1615 |
| Track Rear (mm) | 1630 |
| Towing Capacity Brake (kg) | 2000 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Great Britain |
|---|---|
| Number of Doors | 4 |
| Seats | 2 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2007-05-03 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
