Overview

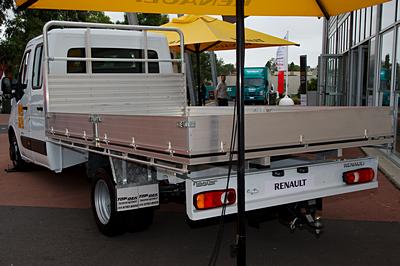

The 2013 Renault Master Base is a rear Double Cab Chassis that was released to the Australian market on 228th August 2013 classified as a X-62. The Renault Master is regarded as a double cab chassis built in France with prices from a dealer as a used car starting at $53,490.
The Renault Master is a rear 4 door with 7 seats, powered by a 2.3L 4 engine that has 110 kW of power (at 3500 rpm) and 350 Nm of torque (at 1500 rpm) via a Six-speed Manual. It has a 105L fuel tank.
The Renault Master measures 2286mm (90.0 inches) in height, 6749mm (265.7 inches) in length, 2070mm (81.5 inches) in width with a 4332mm (170.6 inches) wheelbase that brings about a total of 2148kg (4735.5 lbs) of unladen weight. The Master Base comes standard with 225/65 R 112 front tyres and 195/75 R 112 rear tyres. It has a 36 month, 200,000kmkm warranty.
The 2013 Renault Master Base has a 167mm ground clearance with a 3000kg braked and 750kg unbraked towing capacity.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL COMMON RAIL |
|---|---|
| Size (cc) | 2299 |
| Size (L) | 2.3L |
| Cylinders | 4 |
| Camshaft | DUAL OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 110kW |
| Power RPM | 3500 |
| Torque | 350Nm |
| Torque RPM | 1500 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 6 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | strut |
| Suspension Rear | beam |
| Steering Mechanism | POWER STEERING |
| Drive | rear |
| Fuel Combined (L/100km) | - |
|---|---|
| Fuel Urban (L/100km) | 0 |
| Fuel Extra Urban (L/100km) | 0 |
| Tank Size (L) | 105 |
| Fuel Type | diesel |
| e10 Compatible | - |
| CO2 Combined | - |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 225/65 R 112 |
| Tyre Rear | 195/75 R 112 |
| Front Rim Size | 6.5x16 |
| Rear Rim Size | 5.5x16 |
| Vehicle Height (mm) | 2286 |
|---|---|
| Vehicle Length (mm) | 6749 |
| Vehicle Width (mm) | 2070 |
| Ground Clearance (mm) | 167 |
| Wheelbase (mm) | 4332 |
| Turning Circle (m) | 15700 |
| Unladen Weight (kg) | 2148 |
| Gross Combined Weight (kg) | 0 |
| Gross Vehicle Weight (kg) | 4500 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 3000 |
| Towing Capacity Unbraked (kg) | 750 |
| Compliance Plate Location | - |
|---|---|
| Country Of Origin | France |
| Number of Doors | 4 |
| Seats | 7 |
| Service Interval KMs | 30000 |
| Service Interval Months | 0 |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 200 |
| Warranty Months | 36 |
| Discontinued Date | 2014-04-30 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | EU5 |
