Overview

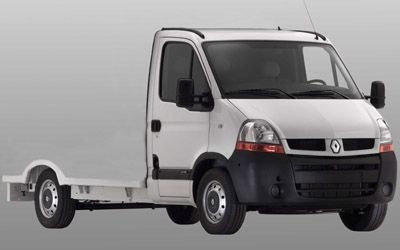

The 2006 Renault Master Air is a front-wheel drive, Single Cab Chassis that was released to the Australian market on 5th April 2005. The Renault Master is regarded as a Van over 3.5t built in France and when it was new had prices starting at $38,690.
This Renault Master is powered by a 2.5L 4-cylinder engine that has 84 kW of power (at 3500 rpm) and 290 Nm of torque (at 1600 rpm) via a Six-speed Manual transmission. Renault claims the Master Air uses 8.9L/100km of Diesel in the combined city and highway cycle while putting out nullg of CO2. It has a 100L fuel tank, meaning it should be able to travel 1124km per full tank
The Renault Master measures 2256mm (88.8 inches) in height, 5869mm (231.1 inches) in length, 1990mm (78.3 inches) in width with a 4078mm (160.6 inches) wheelbase that brings about a total of 1632kg (3597.9 lbs) of unladen weight. The Master Air comes standard with 225/65 R16 front tyres and 225/65 R16 rear tyres. It has a 36 month, 100,000 km warranty.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL COMMON RAIL |
|---|---|
| Size (cc) | 2463 |
| Size (L) | 2.5L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 84kW |
| Power RPM | 3500 |
| Torque | 290Nm |
| Torque RPM | 1600 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 6 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Wishbone |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | front |
| Fuel Combined (L/100km) | 8.9 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 100 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | - |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 225/65 R16 |
| Tyre Rear | 225/65 R16 |
| Front Rim Size | 6x16 |
| Rear Rim Size | 6x16 |
| Vehicle Height (mm) | 2256 |
|---|---|
| Vehicle Length (mm) | 5869 |
| Vehicle Width (mm) | 1990 |
| Ground Clearance (mm) | - |
| Wheelbase (mm) | 4078 |
| Turning Circle (m) | 15200 |
| Unladen Weight (kg) | 1632 |
| Gross Combined Weight (kg) | 5500 |
| Gross Vehicle Weight (kg) | 3500 |
| Track Front (mm) | 1740 |
| Track Rear (mm) | 1725 |
| Towing Capacity Brake (kg) | 2000 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | France |
|---|---|
| Number of Doors | 2 |
| Seats | 3 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2007-05-03 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
