Overview

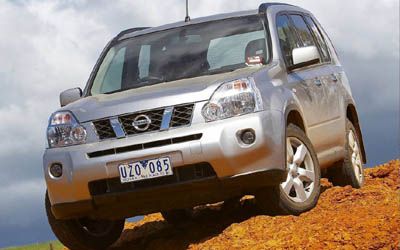

The 2010 Nissan X-Trail TS is a four-wheel drive, 5-door SUV that was released to the Australian market on 2nd December 2009 classified as a T31. The Nissan X-Trail is regarded as a small SUV built in Japan and when it was new had prices starting at $37,740.
This Nissan X-Trail is powered by a 2.0L 4-cylinder engine that has 127 kW of power (at 3750 rpm) and 360 Nm of torque (at 2000 rpm) via a Six-speed Manual transmission. Nissan claims the X-Trail TS uses 7.5L/100km of Diesel in the combined city and highway cycle while putting out 198g of CO2. It has a 65L fuel tank, meaning it should be able to travel 867km per full tank
The Nissan X-Trail measures 1685mm (66.3 inches) in height, 4630mm (182.3 inches) in length, 1785mm (70.3 inches) in width with a 2630mm (103.5 inches) wheelbase that brings about a total of 1610kg (3549.4 lbs) of unladen weight. The X-Trail TS comes standard with 215/60 R17 H front tyres and 215/60 R17 H rear tyres. It has a 36 month, 100,000 km warranty.
The 2010 Nissan X-Trail TS has a 200mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.
The Nissan X-Trail has received a 4 star rating from ANCAP.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL COMMON RAIL |
|---|---|
| Size (cc) | 1995 |
| Size (L) | 2.0L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 127kW |
| Power RPM | 3750 |
| Torque | 360Nm |
| Torque RPM | 2000 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 6 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Strut |
| Suspension Rear | Multi-Link |
| Steering Mechanism | - |
| Drive | 4x4 |
| Fuel Combined (L/100km) | 7.5 |
|---|---|
| Fuel Urban (L/100km) | 9.3 |
| Fuel Extra Urban (L/100km) | 6.3 |
| Tank Size (L) | 65 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | 198 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC - VENTILATED |
| Tyre Front | 215/60 R17 H |
| Tyre Rear | 215/60 R17 H |
| Front Rim Size | 6.5x17 |
| Rear Rim Size | 6.5x17 |
| Vehicle Height (mm) | 1685 |
|---|---|
| Vehicle Length (mm) | 4630 |
| Vehicle Width (mm) | 1785 |
| Ground Clearance (mm) | 200 |
| Wheelbase (mm) | 2630 |
| Turning Circle (m) | 10800 |
| Unladen Weight (kg) | 1610 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 2150 |
| Track Front (mm) | 1530 |
| Track Rear (mm) | 1535 |
| Towing Capacity Brake (kg) | 2000 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Japan |
|---|---|
| Number of Doors | 5 |
| Seats | 5 |
| Service Interval KMs | 10000 |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2010-09-05 |
| ANCAP Rating | 4 |
|---|---|
| Euro Air Pollution Standard | EU4 |
