Overview

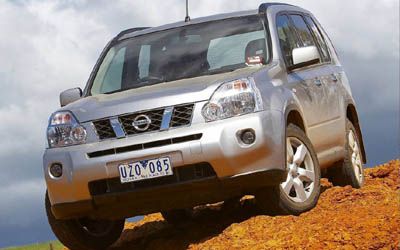

The 2009 Nissan X-Trail TS is a four-wheel drive, 5-door SUV that was released to the Australian market on 4th January 2009 classified as a T31. The Nissan X-Trail is regarded as a small SUV built in Japan and when it was new had prices starting at $36,990.
This Nissan X-Trail is powered by a 2.0L 4-cylinder engine that has 127 kW of power (at 3750 rpm) and 360 Nm of torque (at 2000 rpm) via a Six-speed Manual transmission. Nissan claims the X-Trail TS uses 7.4L/100km of Diesel in the combined city and highway cycle while putting out 198g of CO2. It has a 65L fuel tank, meaning it should be able to travel 878km per full tank
The Nissan X-Trail measures 1685mm (66.3 inches) in height, 4630mm (182.3 inches) in length, 1785mm (70.3 inches) in width with a 2630mm (103.5 inches) wheelbase that brings about a total of 1651kg (3639.8 lbs) of unladen weight. The X-Trail TS comes standard with 215/60 R17 96H ? front tyres and 215/60 R17 96H ? rear tyres. It has a 36 month, 100,000 km warranty.
The 2009 Nissan X-Trail TS has a 200mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.
Comparative Rating
Quickly see how this car stacks up against its competition. Select any benchmark to see more details.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL COMMON RAIL |
|---|---|
| Size (cc) | 1995 |
| Size (L) | 2.0L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 127kW |
| Power RPM | 3750 |
| Torque | 360Nm |
| Torque RPM | 2000 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 6 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Strut |
| Suspension Rear | Multi-Link |
| Steering Mechanism | - |
| Drive | 4x4 |
| Fuel Combined (L/100km) | 7.4 |
|---|---|
| Fuel Urban (L/100km) | 9.3 |
| Fuel Extra Urban (L/100km) | 6.3 |
| Tank Size (L) | 65 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | 198 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC - VENTILATED |
| Tyre Front | 215/60 R17 96H ? |
| Tyre Rear | 215/60 R17 96H ? |
| Front Rim Size | 6.5x17 |
| Rear Rim Size | 6.5x17 |
| Vehicle Height (mm) | 1685 |
|---|---|
| Vehicle Length (mm) | 4630 |
| Vehicle Width (mm) | 1785 |
| Ground Clearance (mm) | 200 |
| Wheelbase (mm) | 2630 |
| Turning Circle (m) | 10800 |
| Unladen Weight (kg) | 1651 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 2150 |
| Track Front (mm) | 1530 |
| Track Rear (mm) | 1535 |
| Towing Capacity Brake (kg) | 2000 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Japan |
|---|---|
| Number of Doors | 5 |
| Seats | 5 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2009-03-31 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | EU4 |
