Overview

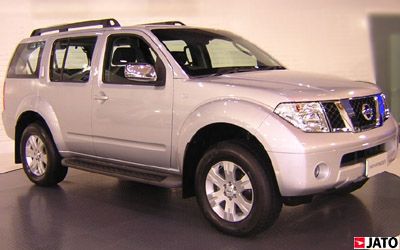

The 2006 Nissan Pathfinder ST is a four-wheel drive, 5-door SUV that was released to the Australian market on 2nd November 2005 classified as a R51. The Nissan Pathfinder is regarded as a large SUV built in Spain and when it was new had prices starting at $47,990.
This Nissan Pathfinder is powered by a 2.5L 4-cylinder engine that has 128 kW of power (at 4000 rpm) and 403 Nm of torque (at 2000 rpm) via a Five-speed Automatic transmission. Nissan claims the Pathfinder ST uses 10.1L/100km of Diesel in the combined city and highway cycle while putting out 267g of CO2. It has a 80L fuel tank, meaning it should be able to travel 792km per full tank
The Nissan Pathfinder measures 1783mm (70.2 inches) in height, 4740mm (186.6 inches) in length, 1850mm (72.8 inches) in width with a 2850mm (112.2 inches) wheelbase that brings about a total of 2272kg (5008.9 lbs) of unladen weight. The Pathfinder ST comes standard with 255/70 R16 front tyres and 255/70 R16 rear tyres. It has a 36 month, 100,000 km warranty.
The 2006 Nissan Pathfinder ST has a 211mm ground clearance with a 3000kg braked and 750kg unbraked towing capacity.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL COMMON RAIL |
|---|---|
| Size (cc) | 2488 |
| Size (L) | 2.5L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 128kW |
| Power RPM | 4000 |
| Torque | 403Nm |
| Torque RPM | 2000 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 5 SP AUTOMATIC |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Wishbone |
| Suspension Rear | Multi-Link |
| Steering Mechanism | - |
| Drive | 4x4 |
| Fuel Combined (L/100km) | 10.1 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 80 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | 267 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC - VENTILATED |
| Tyre Front | 255/70 R16 |
| Tyre Rear | 255/70 R16 |
| Front Rim Size | 7x16 |
| Rear Rim Size | 7x16 |
| Vehicle Height (mm) | 1783 |
|---|---|
| Vehicle Length (mm) | 4740 |
| Vehicle Width (mm) | 1850 |
| Ground Clearance (mm) | 211 |
| Wheelbase (mm) | 2850 |
| Turning Circle (m) | 11900 |
| Unladen Weight (kg) | 2272 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 2880 |
| Track Front (mm) | 1570 |
| Track Rear (mm) | 1570 |
| Towing Capacity Brake (kg) | 3000 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Spain |
|---|---|
| Number of Doors | 5 |
| Seats | 7 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2006-05-31 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
