Overview

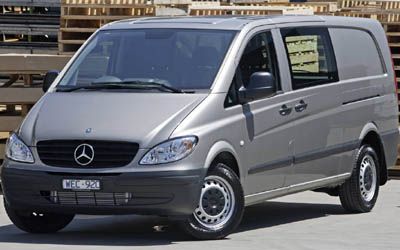

The 2009 Mercedes-Benz Vito Base is a rear-wheel drive, 5-door Panel Van that was released to the Australian market on 3rd January 2009. The Mercedes-Benz Vito is regarded as a Van under 3.5t built in Spain and when it was new had prices starting at $45,490.
This Mercedes-Benz Vito is powered by a 2.1L 4-cylinder engine that has 85 kW of power (at 3800 rpm) and 290 Nm of torque (at 1600 rpm) via a Six-speed Manual transmission. It has a 75L fuel tank
The Mercedes-Benz Vito measures 2328mm (91.7 inches) in height, 4993mm (196.6 inches) in length, 1901mm (74.8 inches) in width with a 3200mm (126.0 inches) wheelbase that brings about a total of 1855kg (4089.6 lbs) of unladen weight. The Vito Base comes standard with 225/55 R16 101 ? front tyres and 225/55 R16 101 ? rear tyres. It has a 36 month, unlimited km warranty.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL COMMON RAIL |
|---|---|
| Size (cc) | 2148 |
| Size (L) | 2.1L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 85kW |
| Power RPM | 3800 |
| Torque | 290Nm |
| Torque RPM | 1600 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 6 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Strut |
| Suspension Rear | Trailing Arm |
| Steering Mechanism | - |
| Drive | rear |
| Fuel Combined (L/100km) | - |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 75 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | 240 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 225/55 R16 101 ? |
| Tyre Rear | 225/55 R16 101 ? |
| Front Rim Size | 6x16 |
| Rear Rim Size | 6x16 |
| Vehicle Height (mm) | 2328 |
|---|---|
| Vehicle Length (mm) | 4993 |
| Vehicle Width (mm) | 1901 |
| Ground Clearance (mm) | - |
| Wheelbase (mm) | 3200 |
| Turning Circle (m) | 11800 |
| Unladen Weight (kg) | 1855 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 2940 |
| Track Front (mm) | 1630 |
| Track Rear (mm) | 1630 |
| Towing Capacity Brake (kg) | 2000 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Spain |
|---|---|
| Number of Doors | 5 |
| Seats | 3 |
| Service Interval KMs | 15000 |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | - |
| Warranty Months | 36 |
| Discontinued Date | 2009-12-31 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | EU4 |
