Overview

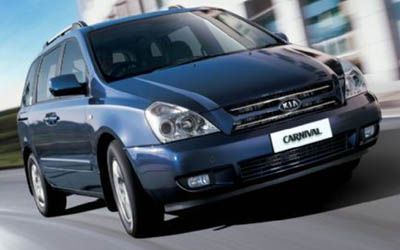

The 2007 Kia Carnival EX-L is a front-wheel drive, 5-door Mpv that was released to the Australian market on 5th June 2007 classified as a VQ. The Kia Carnival is regarded as a MPV built in Korea and when it was new had prices starting at $36,490.
This Kia Carnival is powered by a 2.7L 6-cylinder engine that has 136 kW of power (at 6000 rpm) and 246 Nm of torque (at 4000 rpm) via a Four-speed Automatic transmission. Kia claims the Carnival EX-L uses 11L/100km of Unleaded in the combined city and highway cycle while putting out 262g of CO2. It has a 80L fuel tank, meaning it should be able to travel 727km per full tank
The Kia Carnival measures 1815mm (71.5 inches) in height, 4810mm (189.4 inches) in length, 1985mm (78.1 inches) in width with a 2890mm (113.8 inches) wheelbase that brings about a total of 2100kg (4629.7 lbs) of unladen weight. The Carnival EX-L comes standard with 225/70 R16 102H ? front tyres and 225/70 R16 102H ? rear tyres. It has a 36 month, 100,000 km warranty.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | MULTI-POINT INJECTION |
|---|---|
| Size (cc) | 2656 |
| Size (L) | 2.7L |
| Cylinders | 6 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 24 |
| Power | 136kW |
| Power RPM | 6000 |
| Torque | 246Nm |
| Torque RPM | 4000 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 4 SP AUTOMATIC |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Strut |
| Suspension Rear | Multi-Link |
| Steering Mechanism | - |
| Drive | front |
| Fuel Combined (L/100km) | 11 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 80 |
| Fuel Type | Unleaded |
| e10 Compatible | - |
| CO2 Combined | 262 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 225/70 R16 102H ? |
| Tyre Rear | 225/70 R16 102H ? |
| Front Rim Size | 6.5x16 |
| Rear Rim Size | 6.5x16 |
| Vehicle Height (mm) | 1815 |
|---|---|
| Vehicle Length (mm) | 4810 |
| Vehicle Width (mm) | 1985 |
| Ground Clearance (mm) | - |
| Wheelbase (mm) | 2890 |
| Turning Circle (m) | 11600 |
| Unladen Weight (kg) | 2100 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 2820 |
| Track Front (mm) | 1685 |
| Track Rear (mm) | 1685 |
| Towing Capacity Brake (kg) | 2000 |
| Towing Capacity Unbraked (kg) | 650 |
| Country Of Origin | Korea |
|---|---|
| Number of Doors | 5 |
| Seats | 8 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2007-11-21 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
