Overview

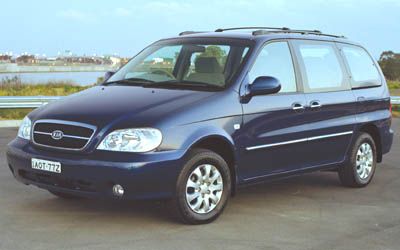

The 2006 Kia Carnival LS is a front-wheel drive, 5-door Mpv that was released to the Australian market on 2nd October 2003. The Kia Carnival is regarded as a MPV built in Korea and when it was new had prices starting at $29,990.
This Kia Carnival is powered by a 2.5L 6-cylinder engine that has 132 kW of power (at 6000 rpm) and 220 Nm of torque (at 4000 rpm) via a Five-speed Manual transmission. Kia claims the Carnival LS uses 11.2L/100km of Unleaded in the combined city and highway cycle while putting out 268g of CO2. It has a 75L fuel tank, meaning it should be able to travel 670km per full tank
The Kia Carnival measures 1805mm (71.1 inches) in height, 4925mm (193.9 inches) in length, 1900mm (74.8 inches) in width with a 2905mm (114.4 inches) wheelbase that brings about a total of 1937kg (4270.3 lbs) of unladen weight. The Carnival LS comes standard with 215/65 R15 H ? front tyres and 215/65 R15 H ? rear tyres. It has a 36 month, 100,000 km warranty.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | MULTI-POINT INJECTION |
|---|---|
| Size (cc) | 2497 |
| Size (L) | 2.5L |
| Cylinders | 6 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 24 |
| Power | 132kW |
| Power RPM | 6000 |
| Torque | 220Nm |
| Torque RPM | 4000 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 5 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Strut |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | front |
| Fuel Combined (L/100km) | 11.2 |
|---|---|
| Fuel Urban (L/100km) | 11.7 |
| Fuel Extra Urban (L/100km) | 7.5 |
| Tank Size (L) | 75 |
| Fuel Type | Unleaded |
| e10 Compatible | - |
| CO2 Combined | 268 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DRUM |
| Tyre Front | 215/65 R15 H ? |
| Tyre Rear | 215/65 R15 H ? |
| Front Rim Size | 6x15 |
| Rear Rim Size | 6x15 |
| Vehicle Height (mm) | 1805 |
|---|---|
| Vehicle Length (mm) | 4925 |
| Vehicle Width (mm) | 1900 |
| Ground Clearance (mm) | - |
| Wheelbase (mm) | 2905 |
| Turning Circle (m) | 13000 |
| Unladen Weight (kg) | 1937 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | - |
| Track Front (mm) | 1625 |
| Track Rear (mm) | 1600 |
| Towing Capacity Brake (kg) | 2000 |
| Towing Capacity Unbraked (kg) | 600 |
| Country Of Origin | Korea |
|---|---|
| Number of Doors | 5 |
| Seats | 7 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2006-03-02 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
