Overview

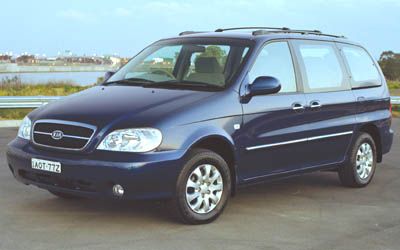

The 2004 Kia Carnival LS is a front-wheel drive, 5-door Mpv that was released to the Australian market on 2nd October 2003. The Kia Carnival is regarded as a MPV built in Korea and when it was new had prices starting at $29,990.
This Kia Carnival is powered by a 2.5L 6-cylinder engine that has 132 kW of power (at 6000 rpm) and 220 Nm of torque (at 4000 rpm) via a Five-speed Manual transmission. It has a 75L fuel tank
The Kia Carnival measures 1805mm (71.1 inches) in height, 4925mm (193.9 inches) in length, 1900mm (74.8 inches) in width with a 2905mm (114.4 inches) wheelbase that brings about a total of 1888kg (4162.3 lbs) of unladen weight. The Carnival LS comes standard with 215/65 R15 H front tyres and 215/65 R15 H rear tyres. It has a 36 month, 100,000 km warranty.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | MULTI-POINT INJECTION |
|---|---|
| Size (cc) | 2497 |
| Size (L) | 2.5L |
| Cylinders | 6 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 24 |
| Power | 132kW |
| Power RPM | 6000 |
| Torque | 220Nm |
| Torque RPM | 4000 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 5 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Strut |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | front |
| Fuel Combined (L/100km) | - |
|---|---|
| Fuel Urban (L/100km) | 11.7 |
| Fuel Extra Urban (L/100km) | 7.5 |
| Tank Size (L) | 75 |
| Fuel Type | Unleaded |
| e10 Compatible | - |
| CO2 Combined | - |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DRUM |
| Tyre Front | 215/65 R15 H |
| Tyre Rear | 215/65 R15 H |
| Front Rim Size | 6x15 |
| Rear Rim Size | 6x15 |
| Vehicle Height (mm) | 1805 |
|---|---|
| Vehicle Length (mm) | 4925 |
| Vehicle Width (mm) | 1900 |
| Ground Clearance (mm) | - |
| Wheelbase (mm) | 2905 |
| Turning Circle (m) | 13000 |
| Unladen Weight (kg) | 1888 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 2555 |
| Track Front (mm) | 1625 |
| Track Rear (mm) | 1600 |
| Towing Capacity Brake (kg) | 2000 |
| Towing Capacity Unbraked (kg) | 570 |
| Country Of Origin | Korea |
|---|---|
| Number of Doors | 5 |
| Seats | 7 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2004-05-31 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
