Overview

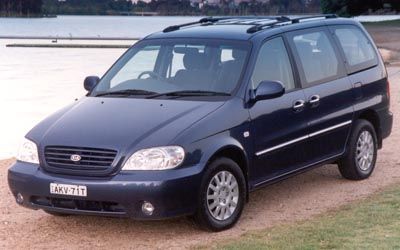

The 2003 Kia Carnival LS is a front-wheel drive, 5-door Mpv that was released to the Australian market on 4th January 2003. The Kia Carnival is regarded as a MPV built in Korea and when it was new had prices starting at $32,500.
This Kia Carnival is powered by a 2.5L 6-cylinder engine that has 132 kW of power (at 6000 rpm) and 220 Nm of torque (at 4000 rpm) via a Four-speed Automatic transmission. It has a 75L fuel tank
The Kia Carnival measures 1805mm (71.1 inches) in height, 4925mm (193.9 inches) in length, 1900mm (74.8 inches) in width with a 2905mm (114.4 inches) wheelbase that brings about a total of 1888kg (4162.3 lbs) of unladen weight. The Carnival LS comes standard with 215/65 R15 H front tyres and 215/65 R15 H rear tyres. It has a 36 month, 100,000 km warranty.
Comparative Rating
Quickly see how this car stacks up against its competition. Select any benchmark to see more details.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | MULTI-POINT INJECTION |
|---|---|
| Size (cc) | 2497 |
| Size (L) | 2.5L |
| Cylinders | 6 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 24 |
| Power | 132kW |
| Power RPM | 6000 |
| Torque | 220Nm |
| Torque RPM | 4000 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 4 SP AUTOMATIC |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Strut |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | front |
| Fuel Combined (L/100km) | - |
|---|---|
| Fuel Urban (L/100km) | 11.7 |
| Fuel Extra Urban (L/100km) | 7.5 |
| Tank Size (L) | 75 |
| Fuel Type | Unleaded |
| e10 Compatible | - |
| CO2 Combined | - |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DRUM |
| Tyre Front | 215/65 R15 H |
| Tyre Rear | 215/65 R15 H |
| Front Rim Size | 6x15 |
| Rear Rim Size | 6x15 |
| Vehicle Height (mm) | 1805 |
|---|---|
| Vehicle Length (mm) | 4925 |
| Vehicle Width (mm) | 1900 |
| Ground Clearance (mm) | - |
| Wheelbase (mm) | 2905 |
| Turning Circle (m) | 13000 |
| Unladen Weight (kg) | 1888 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 2555 |
| Track Front (mm) | 1625 |
| Track Rear (mm) | 1600 |
| Towing Capacity Brake (kg) | 2000 |
| Towing Capacity Unbraked (kg) | 570 |
| Country Of Origin | Korea |
|---|---|
| Number of Doors | 5 |
| Seats | 7 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2003-05-08 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
